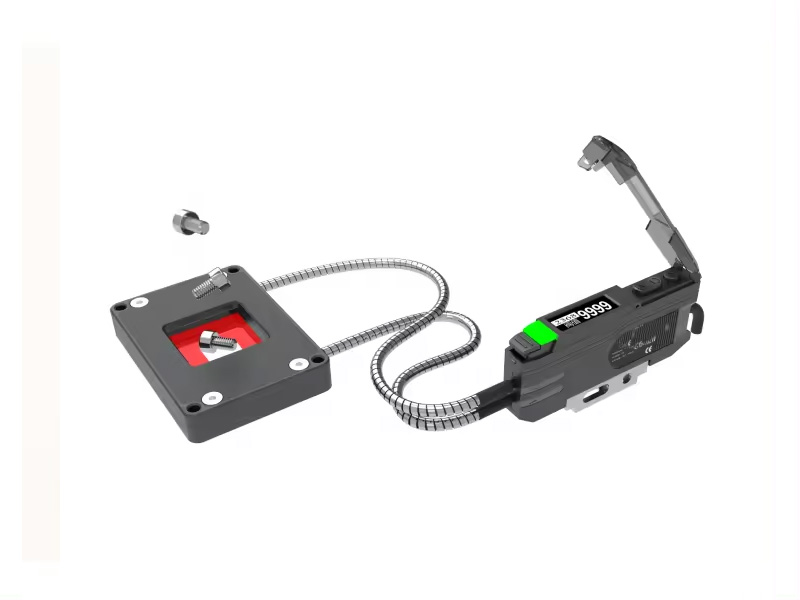

| Product name | Fiber optic sensor head | |||
| Housing material | Aluminum Alloy | |||
| Function | Detection of small objects, screws, etc. | |||
| Package | Kraft box | |||
Item No :
SCH-25ZWOrder(MOQ) :
5Payment :
T/TProduct Origin :

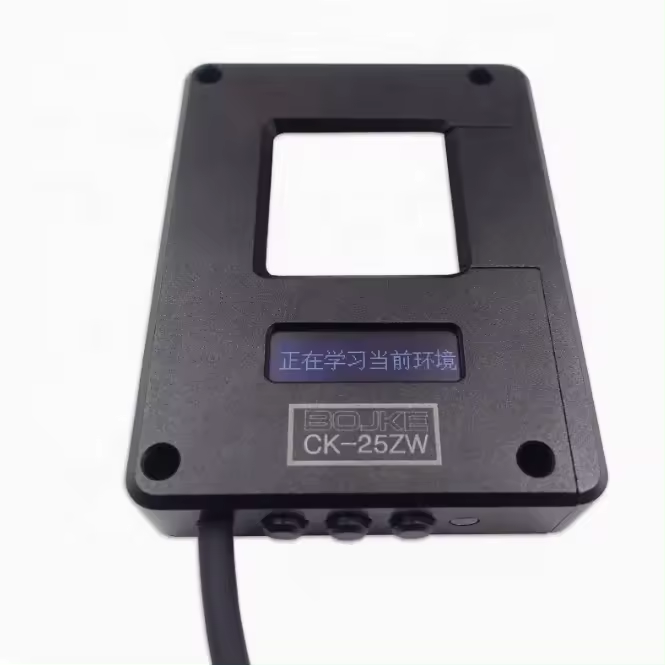

ChinaSCH-25ZW Through Beam Type General Recognition Sensor
| Model No. | SCH-25ZW |
| Type | NPN output |
| Supply Voltage | 12-24VDC±10%,floating P-P below 10% |
| Power Consumption | Less than 600mW |
| Light Source | Infrared 940nm |
| Sensitivity | 5-speed adjustable |
| Operation Mode | Single output/count output |
| Detection Output | NPN Open collector output,Max input current100mA External Max voltage 30V DC,residue voltage less than 1V |
| Output status | NO/NC switchable |
| Delay Function | Normal output/output delay/one-time output,three output modes available Two adjustable delay times:1ms～9999ms |
| Response Time | Less than 900us |
| Display | OLED screen display |
| Protect Circuit | Reverse polarity protection of power supply;Output short circuit or overload protection |
| Ambient Illumination | Incandescent lamp:≤20,000lux,Sunlight:≤30,000lux |
| Vibration Resistance | 10~55Hz,dual amplitude:1.5mm,X,Y,Z direction each 2 hours |
| Ambient Temperature | -25～+55℃,no freezing |
| Model No. | SCH-60ZW |
| Type | NPN output |
| Supply Power | 12-24VDC±10%,floating P-P below 10% |
| Consumption Power | Less than 750mW |
| Light Source | Infrared 940 nm |
| Sensitivity | 5-speed adjustable |
| Operation Mode | Single output/count output |
| Detection Output | NPN Open collector output,Max input current100mA External Max voltage 30VDC,residue voltage less than 1V |
| Output Status | NO/NC switchable |
| Delay Function | Normal output/output delay/one-time output,three output modes available Two adjustable delay times:1ms～9999ms |
| Response Time | Less than 900us |
| Extema control | Low level pulse:currentenvironmentlearning/current count reset |
| Display | OLED screen display |
| Protect Circuit | Reverse polarity protection of power supply;Output short circuit or overload protection |
| Ambient Illumination | Incandescent lamp:≤20,000lux,Sunlight:≤30,000lux |
| Vibration Resistance | 10~55Hz,dual amplitude:1.5mm,X,Y,Z direction each2 hours |
| Ambient Temperature | 25~+55℃,no freezing |
Dimension Drawing

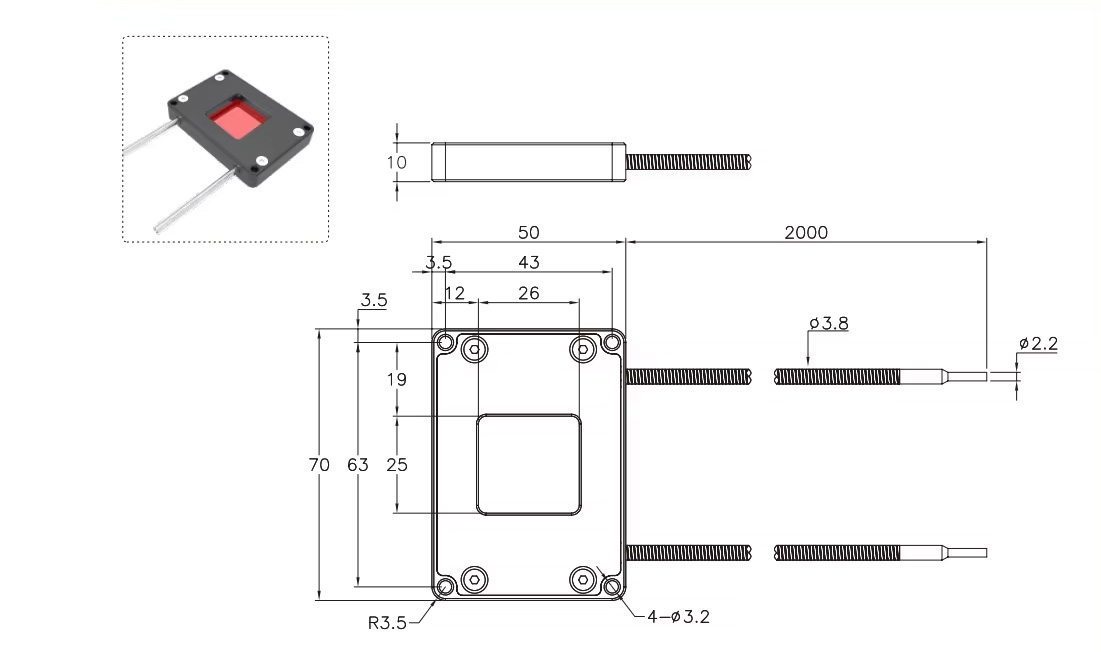

SCH-25

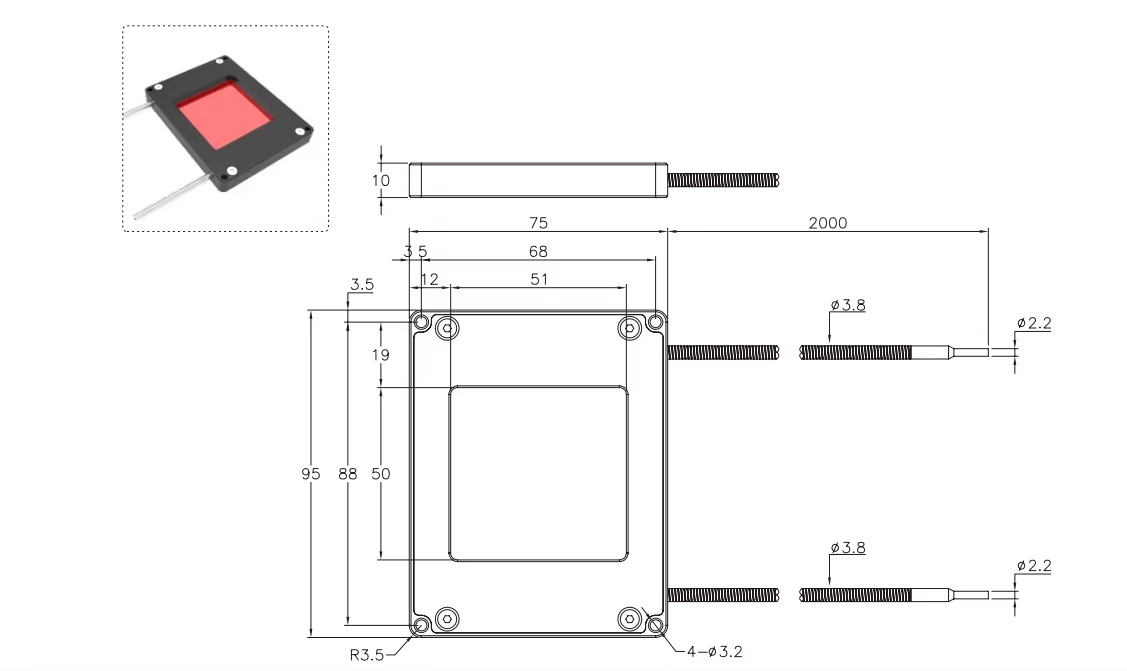

SCH-50

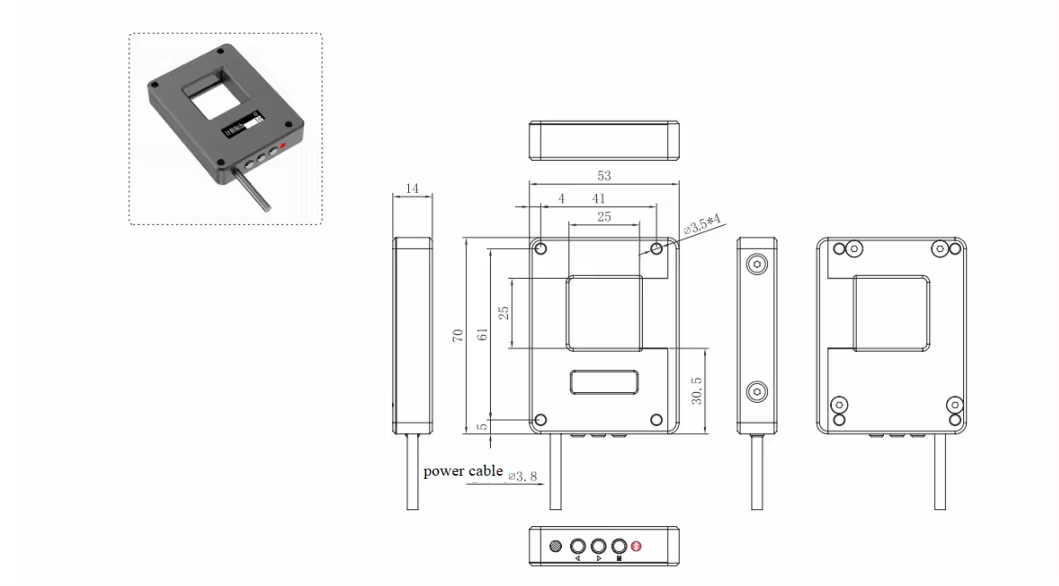

SCH-25ZW

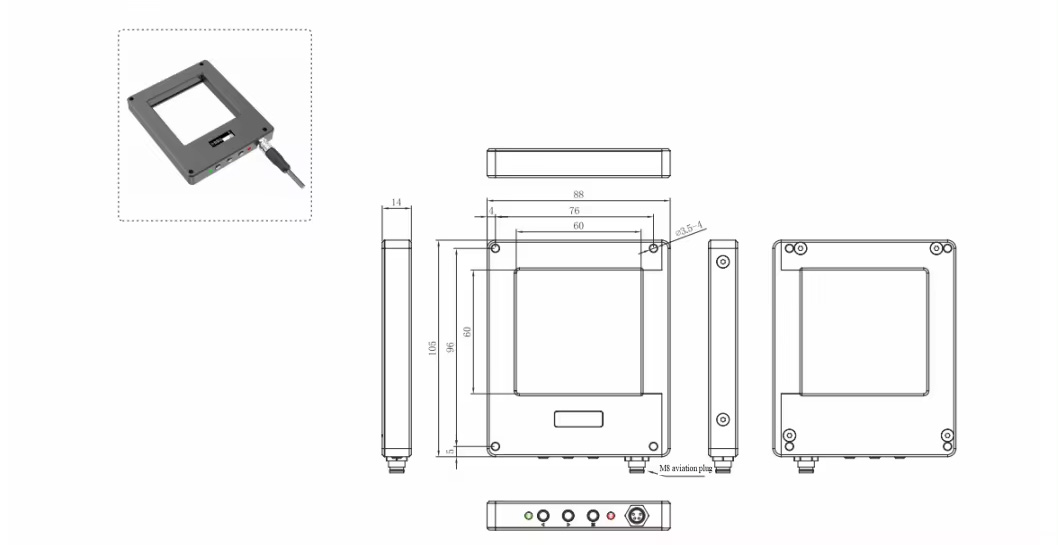

SCH-60ZW
