♦A control module integrating valve terminal technology and EtherNet/IP bus technology.
♦It can realize centralized and distributed control, optimize system design, facilitate construction, and simplify debugging, performance testing & diagnostic maintenance of complex systems in the industrial field.
♦The product adopts a modular structure and occupies little space with the addition of pluggable terminals, leading to fast wiring.
♦It has easy configuration and supports most of the mainstream EtherNet/IP master stations, so it can be widely used in industrial control systems.
Item No :
SCH-EI-08B-S01Order(MOQ) :
5Payment :
T/TProduct Origin :
ChinaSCH-EI-08B-S01control module
SCH-S01 series EtherNet/IP valve terminal, customized base plate with a fully integrated all-aluminum alloy design, featuring an attractive appearance. It can be equipped with 8 double solenoid valves, supports SMC-SY3 series valves.
Technical Specifications
| Power Supply | 18~36 VDC |
| Current Consumption | 30mA |
| Weight | Differences in product models |
| Module Size | 178.5*90*65mm |
| Protect. Class | IP20 |
| Operating Temperature | -5~+50℃ |
| Storage Temperature | -20~+75℃ |
| Relative Humidity | 95 %, no condensation |
| Power Interface | M12 5pin A coded |
| Positions of solenoid valve | 8 |
| Model of solenoid valve | SMC-SY3 series |
| Surge protection for power interface | Support |
| Reverse connection protection for power interface | Support |
| Short-circuit protection for channels | Support |
| Channel open circuit diagnosis | Support |
| Short circuit diagnosis of the channel | Support |
| Protocol | EtherNet/IP |
| Data Transfer Medium | UTP or STP of 5 categories or above (STP recommended) |
| Bus Interface | 2 M12, 4-pin, D-type encoder, hole end |
| Data Transfer Rates | 100Mb/s |
| Distance Between Stations | 100Mb/s |
| Electrical Isolation | YES |
| Bus Interface | M12 |

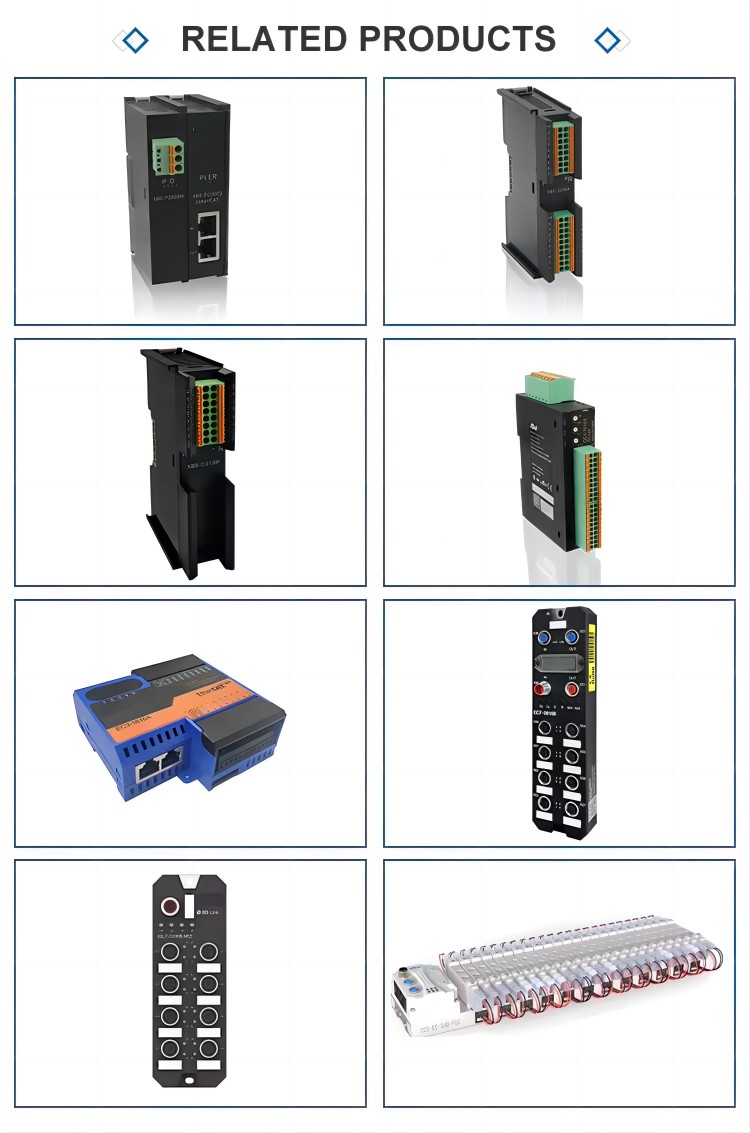

Recommend Products
