♦It is suitable for pipe sizes ranging from 65 to 4000mm
♦ For dirty liquids, a certain amount of air bubbles or suspended solids shall be contained
♦ Excellent low flow rate measurement ability, low to 0.05m/s
♦ A wide range of flow measurement, high flow rate can reach 12m/s
♦ High-temperature transducer is suitable to liquids of -35℃ ~ 150℃
♦ Do not need to shut down the pipe flow when installing the transducers
♦ User-friendly configuration
♦ 4-20mA, Relay Totalizer and Relay Alarm outputs
♦ Accuracy: 2.0% Calibrated span
Item No :
SCH61-EIOrder(MOQ) :
5Payment :
T/TProduct Origin :
ChinaSCH61-EI Doppler Insertion Ultrasonic Flow Meter
| Measurement principle | Doppler ultrasonic |
| Resolution | 0.5mm/s |
| Repeatability | 0.2% of reading |
| Accuracy | 0.5% -- 2.0% F.S. |
| Response time | 2-60s for optional |
| Flow Velocity Range | 0.05- 12 m/s |
| Liquid Types Supported | Liquids containing 100ppm of reflectors and at least 20% of the reflectors are larger than 100 micron. |
| Power Supply | AC: 85-265V DC: 24V/500mA |

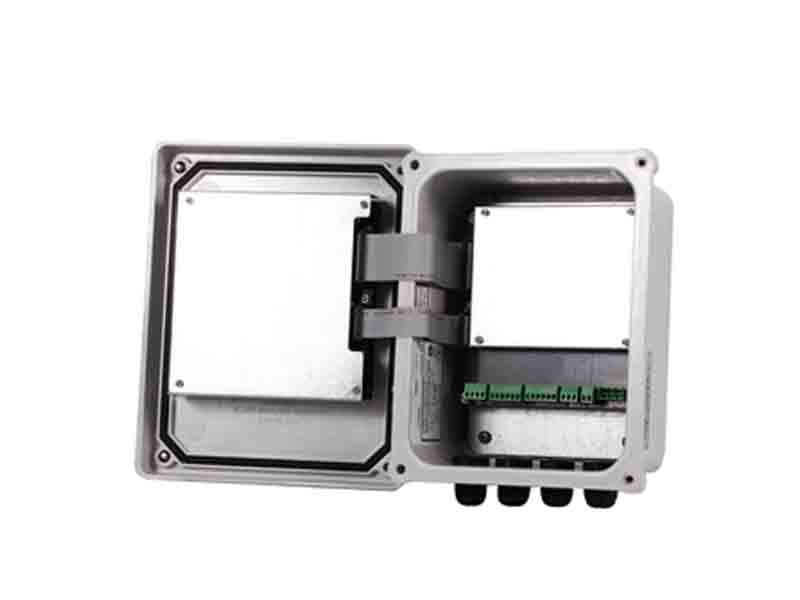

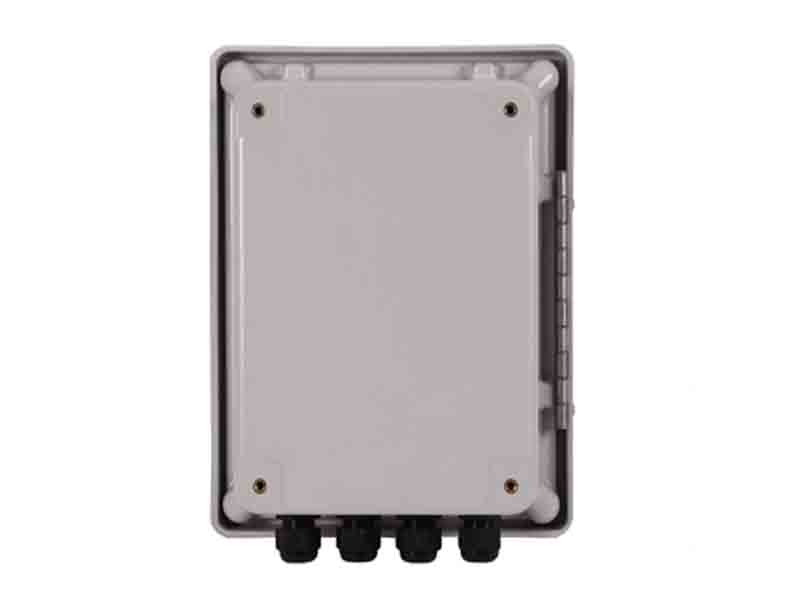

| Enclosure type | Wall-mounted |
| Degree of protection | IP66 according to EN60529 |
| Operating temperature | -20℃ to +60℃ |
| Housing material | Fiberglass |
| Measurement Channels | 1 |
| Display | 2 line × 8 characters LCD, 8-digit rate or 8-digit total (resettable) |
| Units | User Configured (English and Metric) |
| Rate | Rate and Velocity Display |
| Totalized | gallons, ft³, barrels, lbs, liters, m³,kg |
| Communication | 4-20mA,relays for Totalizer and alarm output |
| keypad | 4pcs buttons |
| Size | 244(h)*196(w)*144(d)mm |
| Weight | 2.4kg |

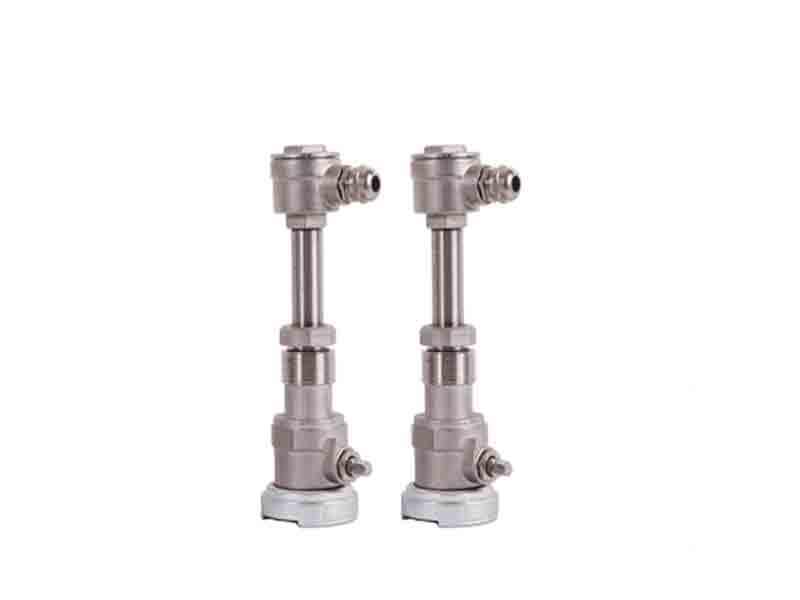

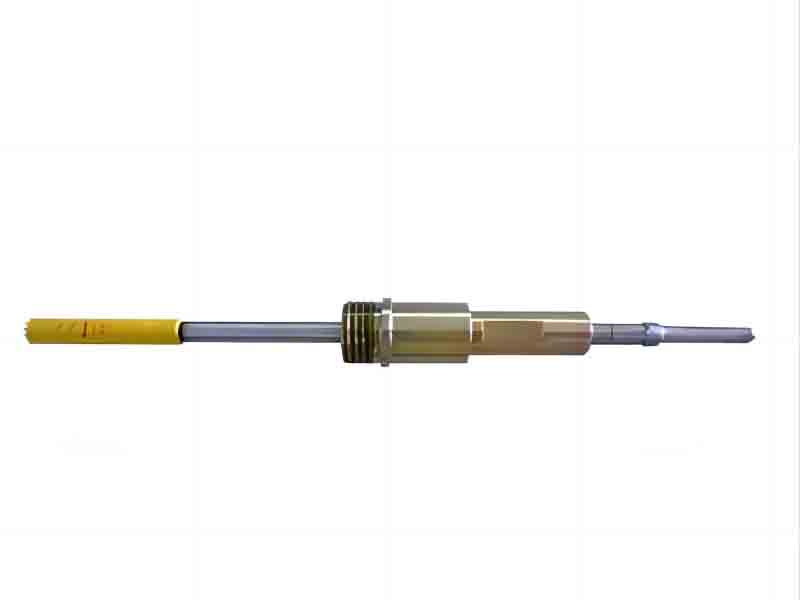

Specifications: Transducer
| Transducers Type | Insertion |
| Degree of protection | IP67 or IP68 according to EN60529 |
| Suited Liquid Temperature | Std. Temp.: -35℃~85℃ |
| High Temp.: -35℃~150℃ | |
| Pipe diameter range | 65-4000 mm |
| Transducer Size | 58*58*295mm |
| Material of transducer heads | Stainless steel |
| Cable Length | Std: 10m |

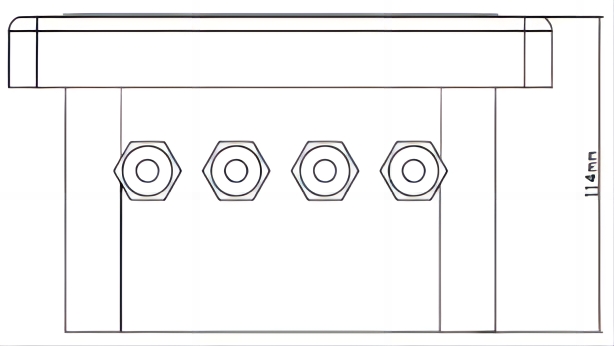

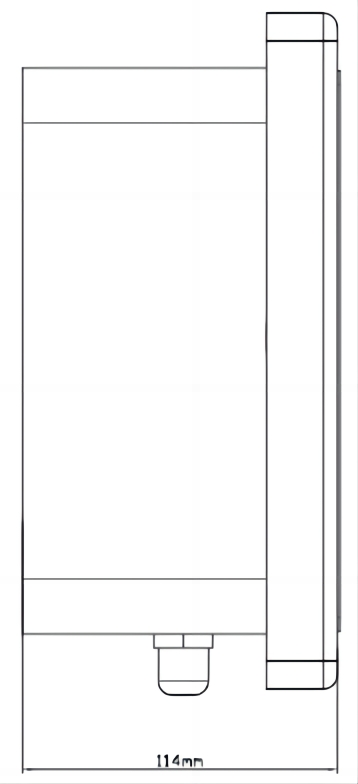

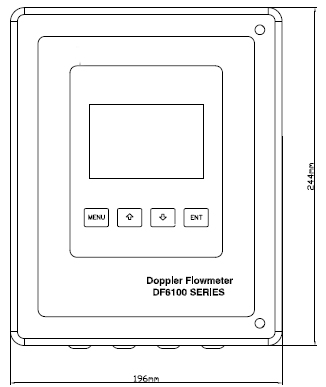

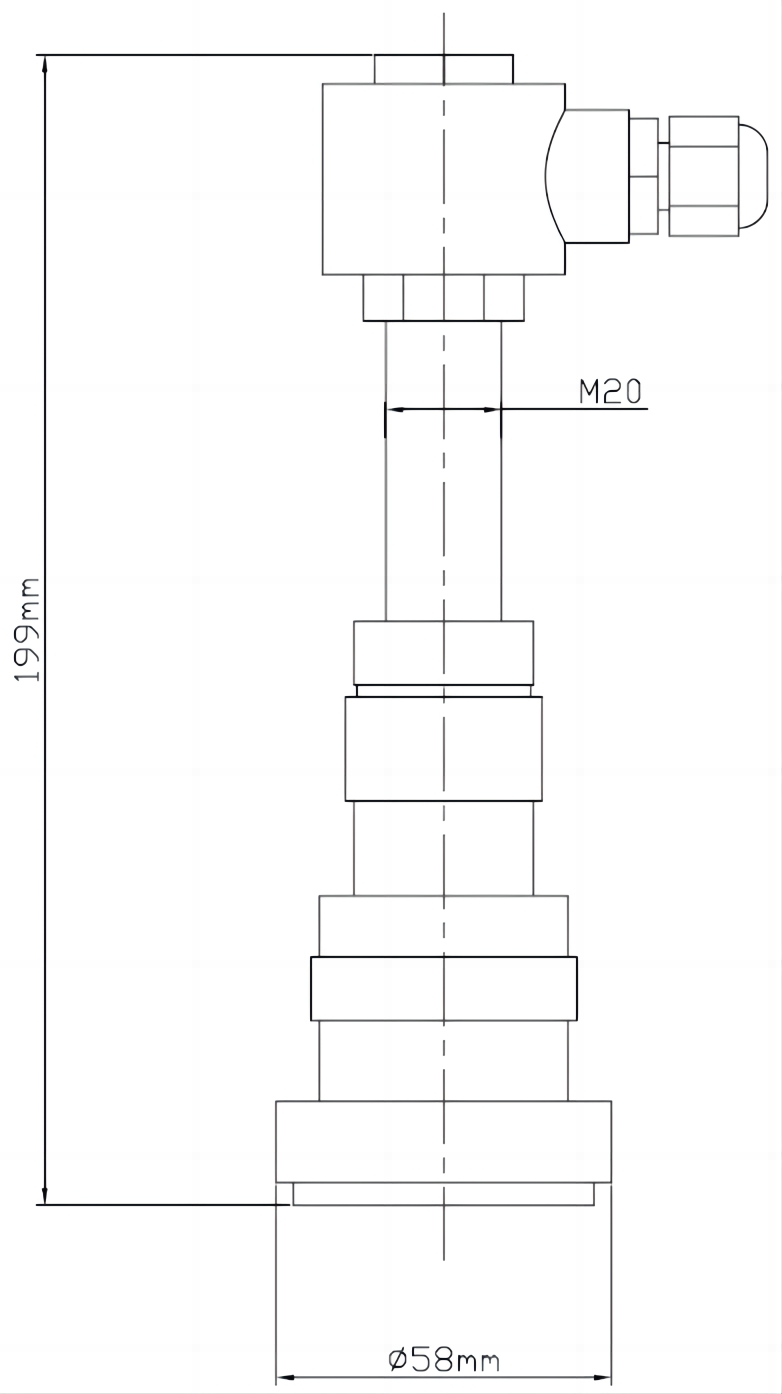

Dimensional Sketches
FAQ
What is your payment term?
T/T,Western Union,L/C,and Paypal.This is negotiable.
Do you give any discount ?
I'll surely try my best to help you get those by the best price and good service at the same time.
Can I buy samples placing orders?
Yes.Please feel free to contact us.
