♦ Hole sizes: 19mm
♦ Protection level: lP65/lP67/IK10
♦Contact silver-plated gold: 1.5μ
♦LED super bright cold light source lamp display
♦Customizable pattern, color and size
♦Comply with IEC60947-5-1 GB14048.5 standard
Item No :
SCH-J19Order(MOQ) :
5Payment :
T/TProduct Origin :
ChinaSCH-J19 Selector and Key Metal Switch

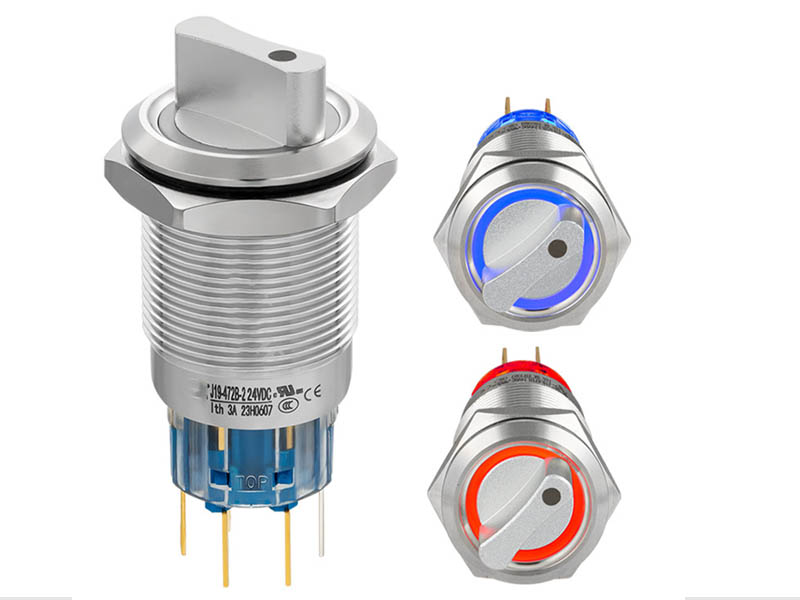

Metal knob selector switch, 2-position and 3-position rotation with light

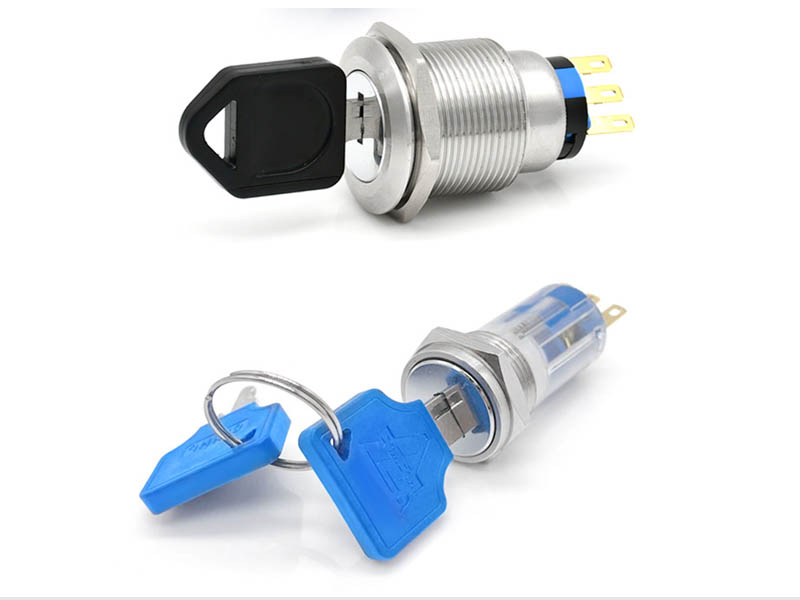

Metal key switch, power lock selection, 2-speed and 3-speed specifications
Technical Specifications
SCH-J19 Selector Metal Switch
| LED light | Ultra-bright cold light source 40,000 hours |
| Contact type | 1NO+1NC 2N0+2NC |
| maximum voltage | 250VAC/DC |
| heat flow | 5A |
| minimum load | 5V AC/DC,1mA |
| Contact material | Silver gold plated |
| Mechanical life | 250,000 times |
| running temperature | -25°to+55 |
| operating temperature | 45 to 85% RL |
| Contact resistance | 50MΩ MAX |
| Solder temperature | 20W / 5s 260°C / 3s |
| Shell material | Stainless steel 304 |
| Electrical life | 100,000 times |

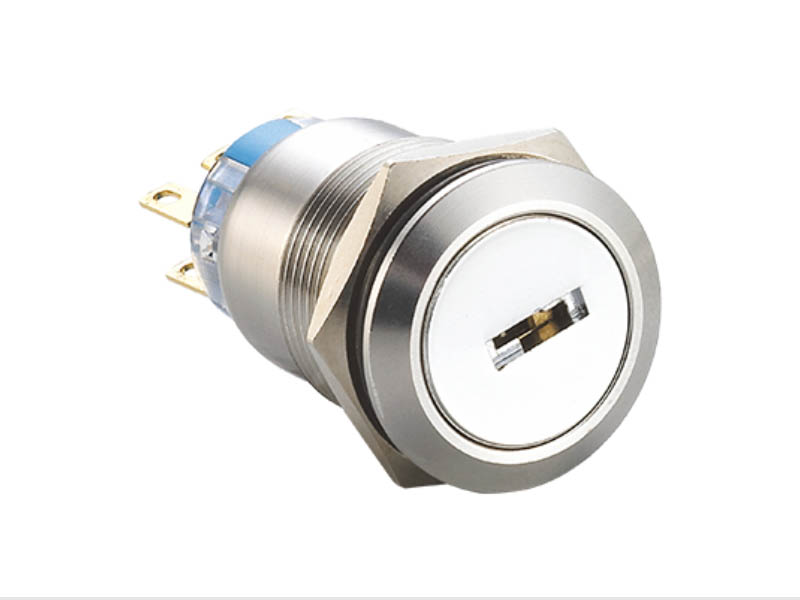

SCH-J19 Key Metal Switch
| Hole Size | 16/19/22mm |
| Contact type | 1NO+1NC 2N0+2NC |
| maximum voltage | 250VAC/DC |
| heat flow | 5A |
| minimum load | 5V AC/DC,1mA |
| Mechanical life | 1 million times |
| Contact material | Silver gold plated |
| Operating temperature | -25°to+55 |
| Contact resistance: | 50MQ MAX |
| Solder temperature | 20W / 5s 260°C / 3s |
| running temperature | -25°to+55 |
| Electrical life | 250,000 times |
SCH-J19 Selector and Key Switch
| Product appearance |
lluminated type |
Operation |
Contact |
Mode |
Color |
Rated Voltage |
|
| Selector Swi | Without LED |
2 Positon | 单刀/SPDT | J19-411 | 请用下列颜色编码 替换型号中的"口" R 红 色 / R e d G 绿 色 / G r e e n Y黄色/Yellow W白色/White B蓝色/Blue |
请用下列颜色编码 替换型号中的"● D:24VDC E:12VDC F:6,3VDC A1:110VAC A2:220VAC |
|
 |
双刀/DPDT | J19-412 | |||||
| 3 Positon | 双刀/DPDT | J19-512 | |||||

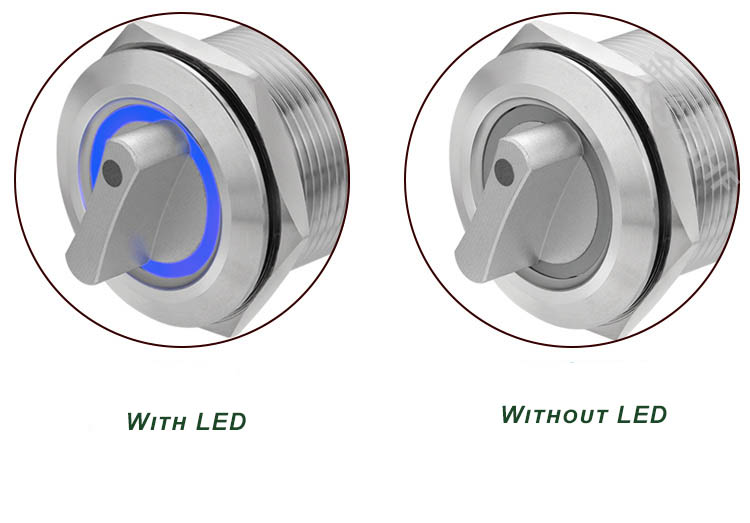

With LED |
2 Positon | 单刀/SPDT | J19-471□● | ||||
| 双刀/DPDT | J19-472□● | ||||||
| 3 Positon | 双刀/DPDT | J19-572□● | |||||
| Key Switch | Maintained | 2 Positon | 单刀/SPDT | J19-611 | |||
 |
|||||||
| 双刀/DPDT | J19-612 | ||||||
| 3 Positon | 双刀/DPDT | J19-712 | |||||

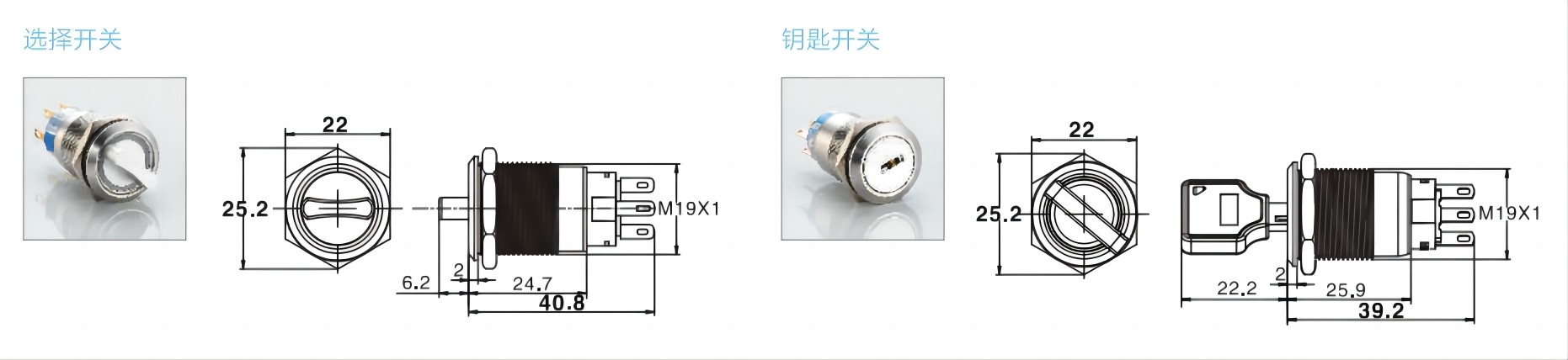

Product Dimensions
FAQ
What is your payment term?
T/T,Western Union,L/C,and Paypal.This is negotiable.
Do you give any discount ?
I'll surely try my best to help you get those by the best price and good service at the same time.
Can I buy samples placing orders?
Yes.Please feel free to contact us.
