♦WINCE system operation interface;
♦Has a special instruction set for palletizing;
♦A complete instruction set, simple programming;
♦Easy operation, simple programming;
♦Integrated drive and control structure, saving lines, space and costs.
Item No :
SCH-RC610AOrder(MOQ) :
5Payment :
T/TProduct Origin :
ChinaSCH-RC610A 6-axis robot control system
The RC610A 6-axis robot control system has the WINCE system operating interface; and a special instruction set for palletizing; it is easy to operate and simple to program; it has an integrated drive and control structure that saves lines, space, and costs.
Technical Specifications
| model | RC610A | Drive and control integrated machine | programming environment | SR language | ||
| Storage method | U disk | |||||
| Teaching pendant | show | 8 inches | standard | O input | Route 48 | |
| Teaching method | Manual data entry (coordinate value input), Cartesian coordinate teaching, Offline teaching (Data input from outside) |
1O | IO output | Route 32 | ||
| external communications | RS-232 | 3 | ||||
| Ethernet | 3 | |||||
| LVDS interface | / | |||||
| USB(2.0) | 3 | |||||
| Track programming language entry | SR language | Basic specifications | Dimensions | 568mm×307mm×213mm | ||
| data cable | 3M | weight | 15Kg | |||
| size and weight | 355mm×248mm×70mm about 2Kg | Power cable | 1.5M | |||
| power supply | 24V DC | using electric | 220VAC | |||
| Operating temperature | 0~40℃ | |||||
| Data exchange method | Telecommunication | Operating temperature | Below 90%RH (no condensation) | |||
| Axis control function | 6 axis | storage temperature | -10~65℃ | |||
| Drive and control integrated machine | Position control cycle | 8K/16K | ||||
| Motion/servo control functions | Linear interpolation, arc interpolation, continuous trajectory, various types of acceleration and deceleration, etc. | |||||
| Coordinate System | Joint coordinate system, rectangular coordinate system | |||||
| Location unit settings | Degree, mm | |||||
| Offline sports | Complete absolute position control method (no need to return to origin) | |||||
Product configuration
| model | RC610A | |
| Teaching pendant | SRPT1000(8-inch touch + button color screen) | |
| Supported motor types | (aXS series) | Motor power range 100W-1000W (without brake), 100W-750W (with brake) |
| Tamagawa | Motor power range 100W-1000W (without brake), 100W-750W (with brake) | |
| Supported encoder types | Multi-turn absolute value type, single-turn absolute value type | |

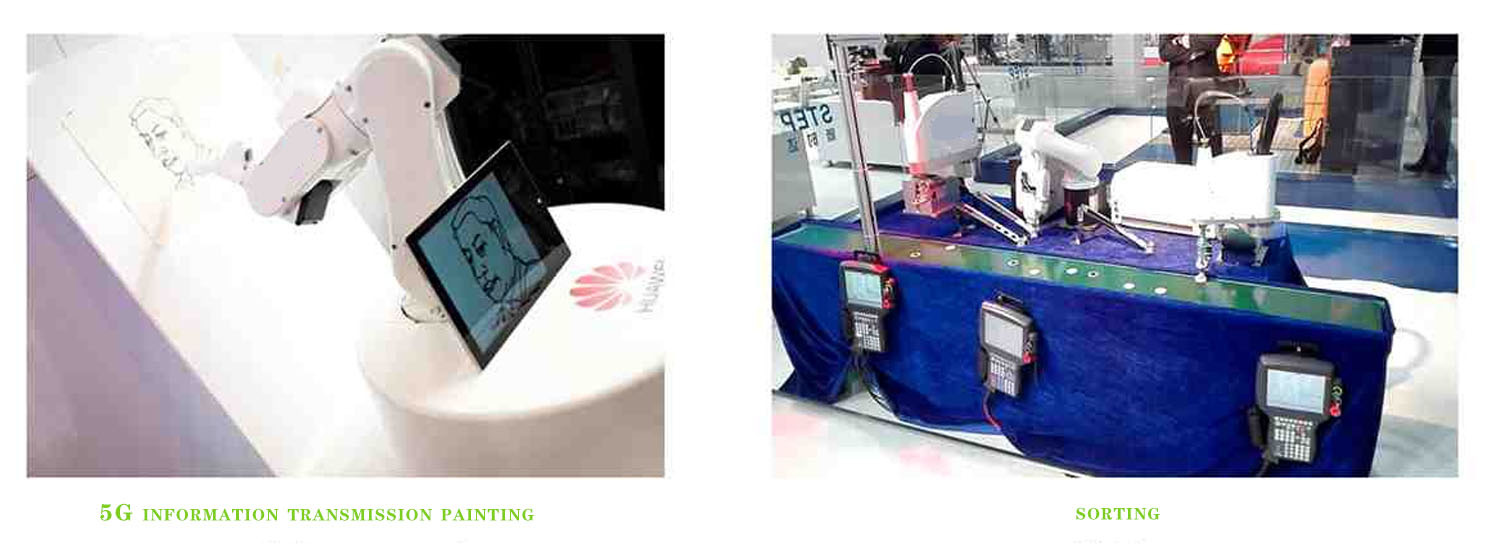

Application
FAQ
Could I have prices of your products?
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
What's the lead time for regular order?
3~7 days for order quantity lower than 500pcs, For more quantity, usually 15 days.
