♦Light weight;
♦Fast running speed;
♦High repeat positioning accuracy;
♦Built-in cable.
Item No :
SCH-SD700Order(MOQ) :
5Payment :
T/TProduct Origin :
ChinaSCH-SD700 6 Axis Industrial Robot
SCH-SD series robots are compact in appearance, small in size and light in weight. They are the most suitable robots for building small units. They can complete loading and unloading, sorting, assembly and other tasks at high speed and with high precision. At the same time, all cables of the SD series robot are built-in, which can flexibly operate in a small space. The installation methods can be selected from ground installation, hanging installation, and flip installation.
Technical Specifications
| Model | Vertical multi-joint | |
| range of motion | J1 | ±170° |
| J2 | ±115 | |
| J3 | +40°~-220° | |
| J4 | ±185 | |
| J5 | ±125° | |
| J6 | ±360° | |
| Maximum speed | J1 | 250°/s |
| J2 | 185°/s | |
| J3 | 290°/s | |
| J4 | 460/s | |
| J5 | 460°/s | |
| J6 | 600°/s | |
| momentary permission Maximum torque |
J5 | 35Nm |
| J6 | 24Nm | |
| User signal line | 0 . 14s qX16线 | |
| User piping | φ4×4 root | |
| Installation method | Formal, reverse, side mounting | |
| Limit protection | 1. Software limit 2. Mechanical limit | |
| weight | 28kg | |

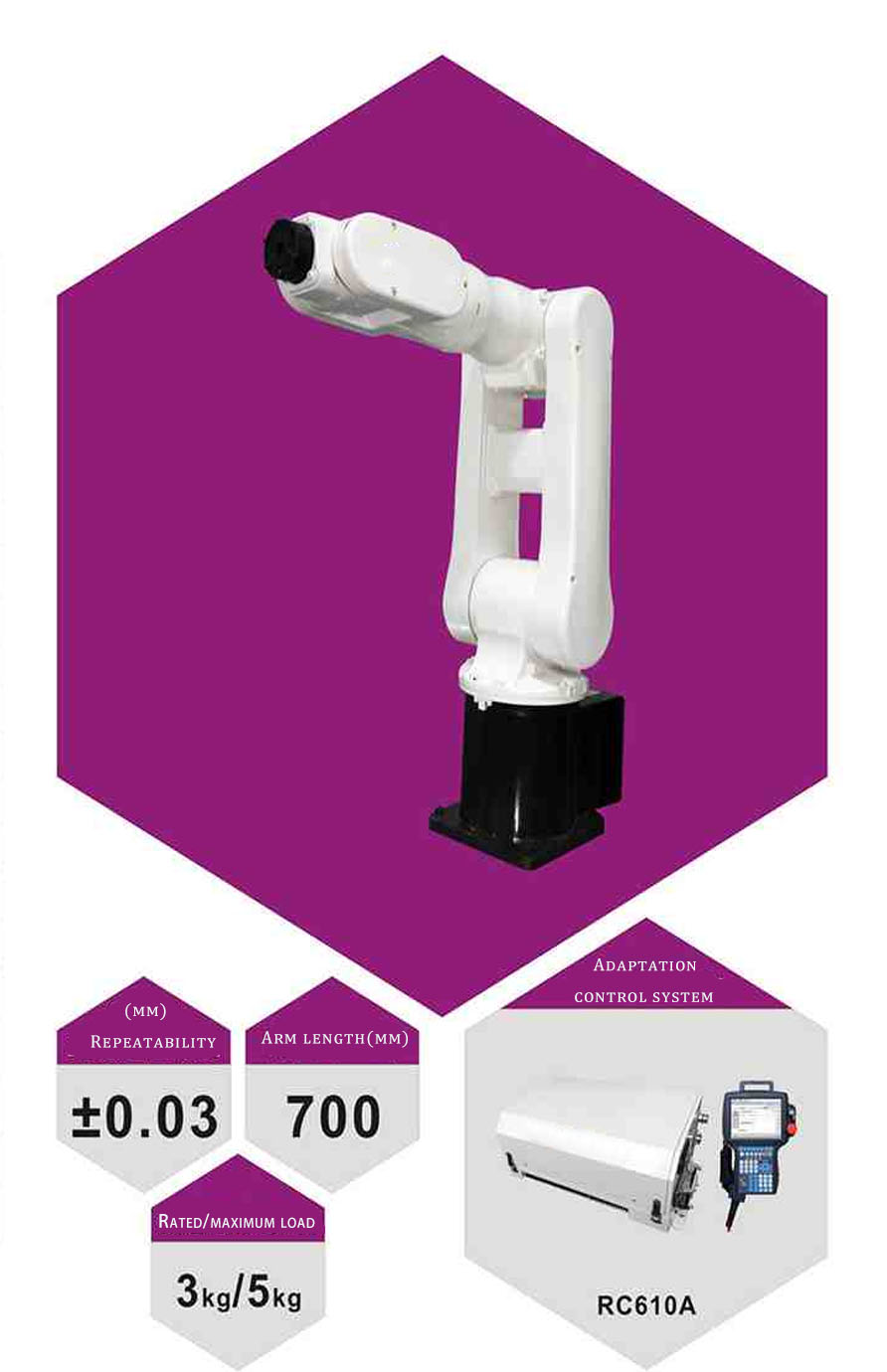

Product Display

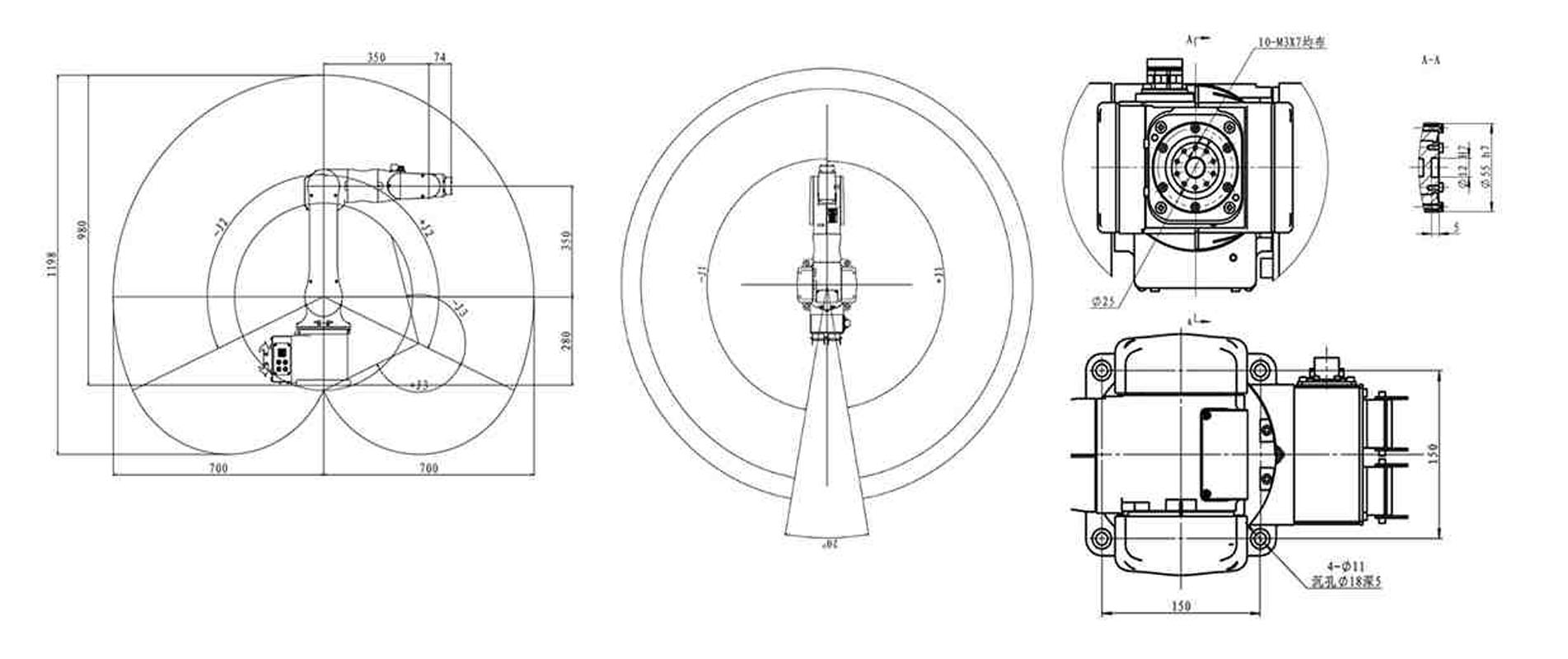

Dimensions
FAQ
Could I have prices of your products?
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
What's the lead time for regular order?
3~7 days for order quantity lower than 500pcs, For more quantity, usually 15 days.
