♦LED modules can be freely combined, you can freelyincrease or decrease;
♦The LED module does not affect the cable definition at any level;
♦Increasing or decreasing the LED module requres replacingthe center bolt;
♦Lampshade:PC
♦Light body: AL
♦Lamp cover: PC/ABS
Item No :
SCH-TL25/TL40Order(MOQ) :
5Payment :
T/TProduct Origin :

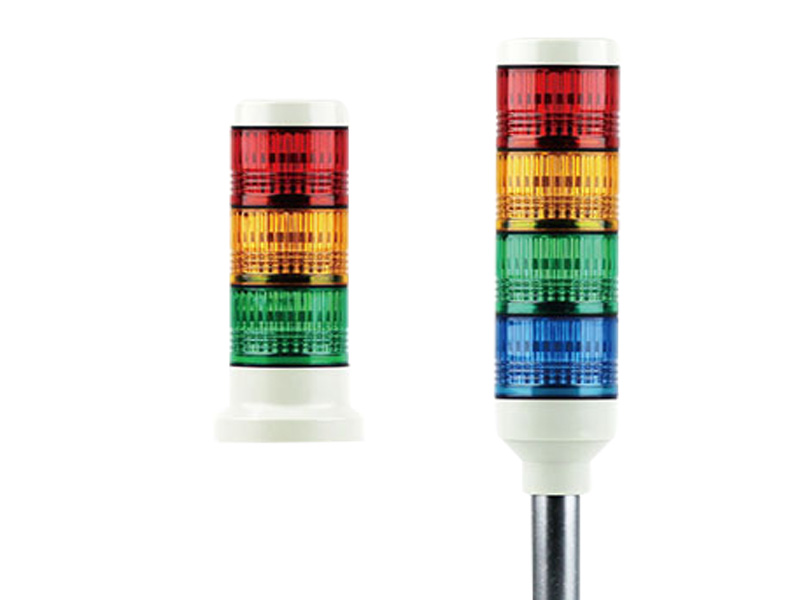

ChinaMultilayer Lamp SCH-TL25/TL40
Multi-layer warning lights are freely combined with multiple LED modules. Various specifications of LED high-brightness lamp beads are available, and various specifications of mounting brackets are matched according to different needs.
Rating
| Model | Lavers | Voltage | Curren | Weight TL25(TL25S) | Color |
| TL25 TL25S |
1 | 12V DC | 30mA | 210g(110g | R |
| 24V DC | 20mA | 210g(110g) | |||
| 2 | 12V DC | 60mA | 220g(120g | R+Y | |
| 24V DC | 40mA | 220g(120g | |||
| 3 | 12V DC | 90mA | 230g(130g | R+Y+G | |
| 24V DC | 60mA | 230g(130g | |||
| 4 | 12V DC | 120mA | 240g(140g | R+Y+G+B | |
| 24V DC | 80mA | 240g(140g | |||
| 5 | 12V DC | 150mA | 250g(150g | R+Y+G+B+W | |
| 24V DC | 100mA | 250g(150g |

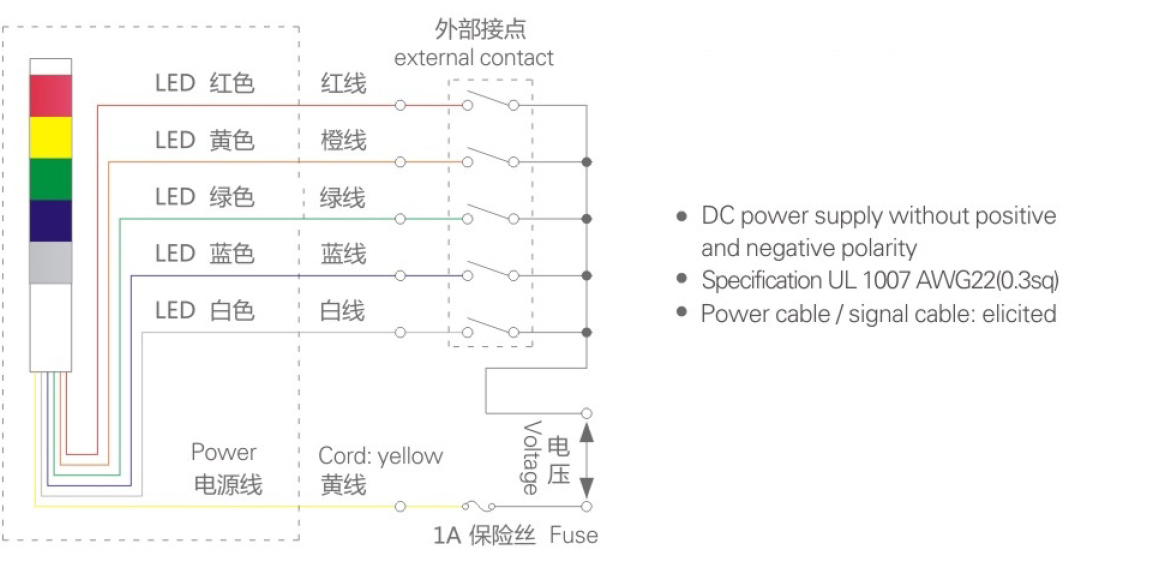

Wiring Diagram
| LED color | Signal line color | 12VDCI24VDC) |
| Red | Red | 30mA/20mA |
| Yellow | Orange | 30mA(20mA) |
| Gree | Green | 30mA(20mA) |
| Blue | Blue | 30mA/20mA |
| White | White | 30mA(20mA) |

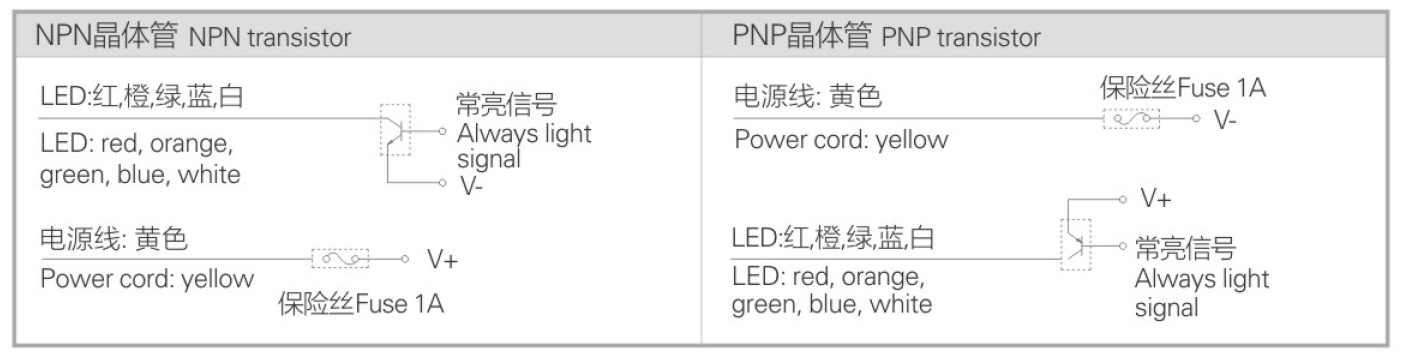

晶体管(NPN/PNP）
| Current capacity | Ic≥100mA |
| Voltage resistance | Vc=35V |
| leakage current | <0.1mA |
| Voitage | FUSE |
| All Voitage | 1A |

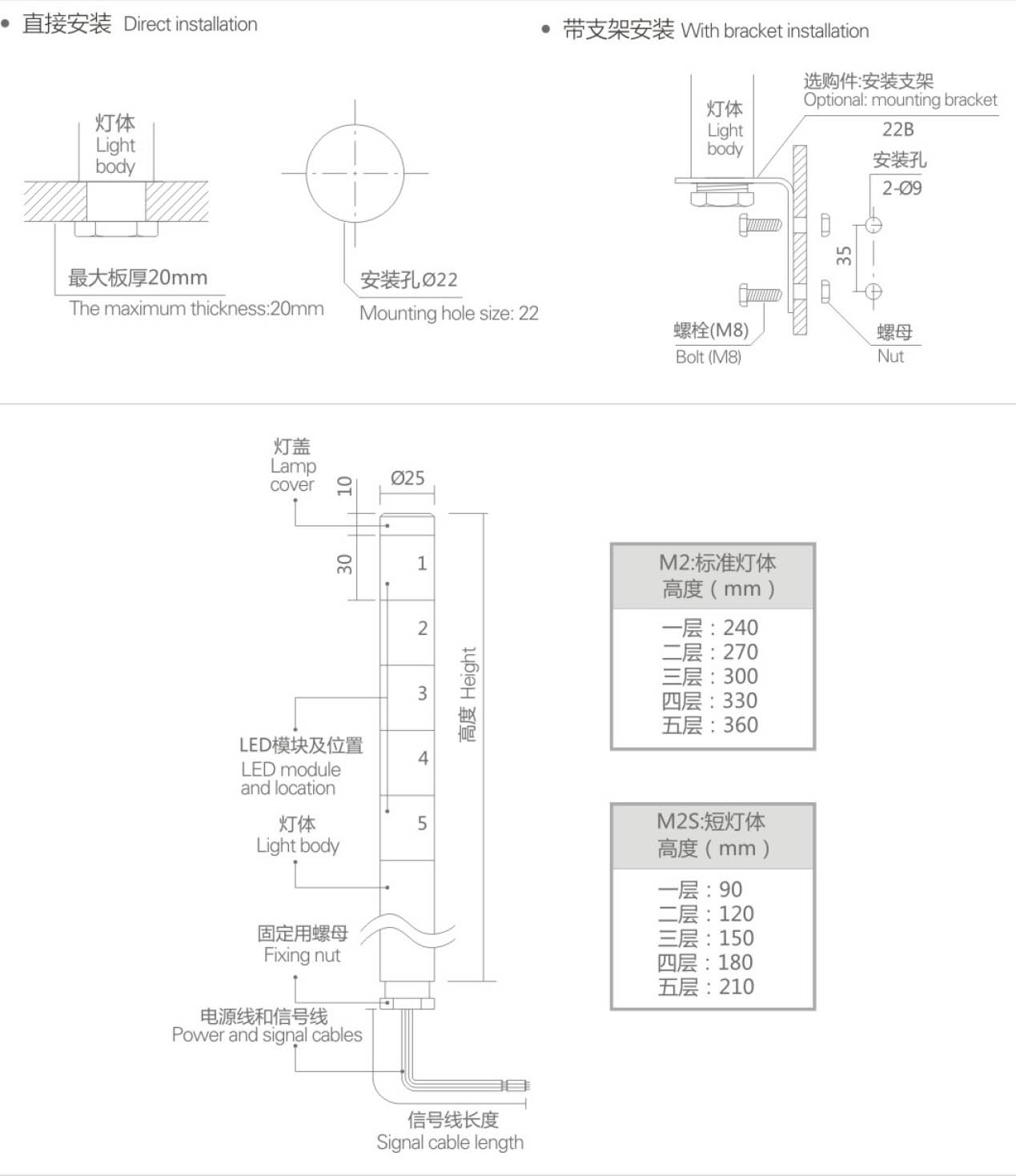

Installation Dimensions
FAQ
Can I get some samples?
Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order.
How to solve the quality problems after sales?
Take photos or videos of the problems and send to us.
We will make a satisfied solution for you within 24 hours after we confirm the problems.
