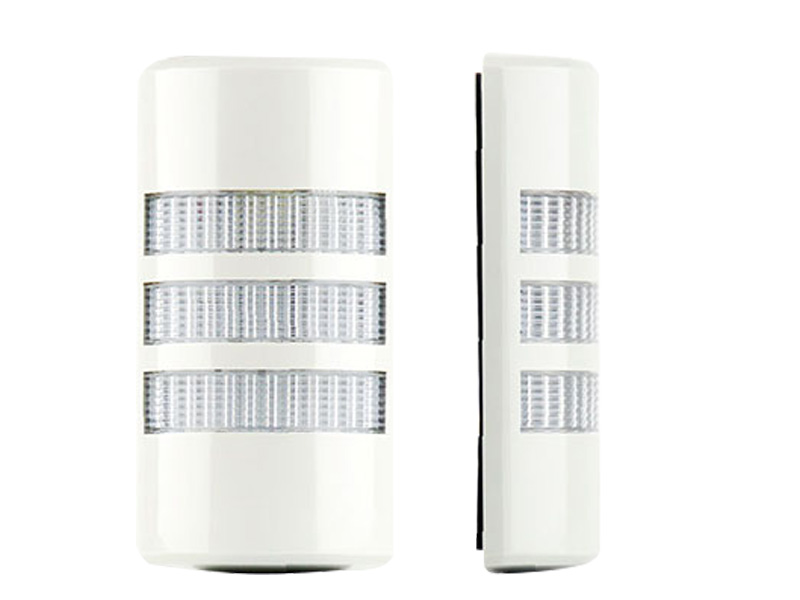

ChinaSCH-TL90-N Wall Lamp
Chrome body,12V/AC and 24V/AC,1m /2m /3m insulated rubber cable
Rating
Voltage |
(mA)Current | Weight |
|
| LED | Buzzer | ||
| DC12V | 60 | 50 | LED：230g LED+Buzzer：240 Always light or Flashing Buzzer double sound；250g |
| DC24V | 20 | 50 | |

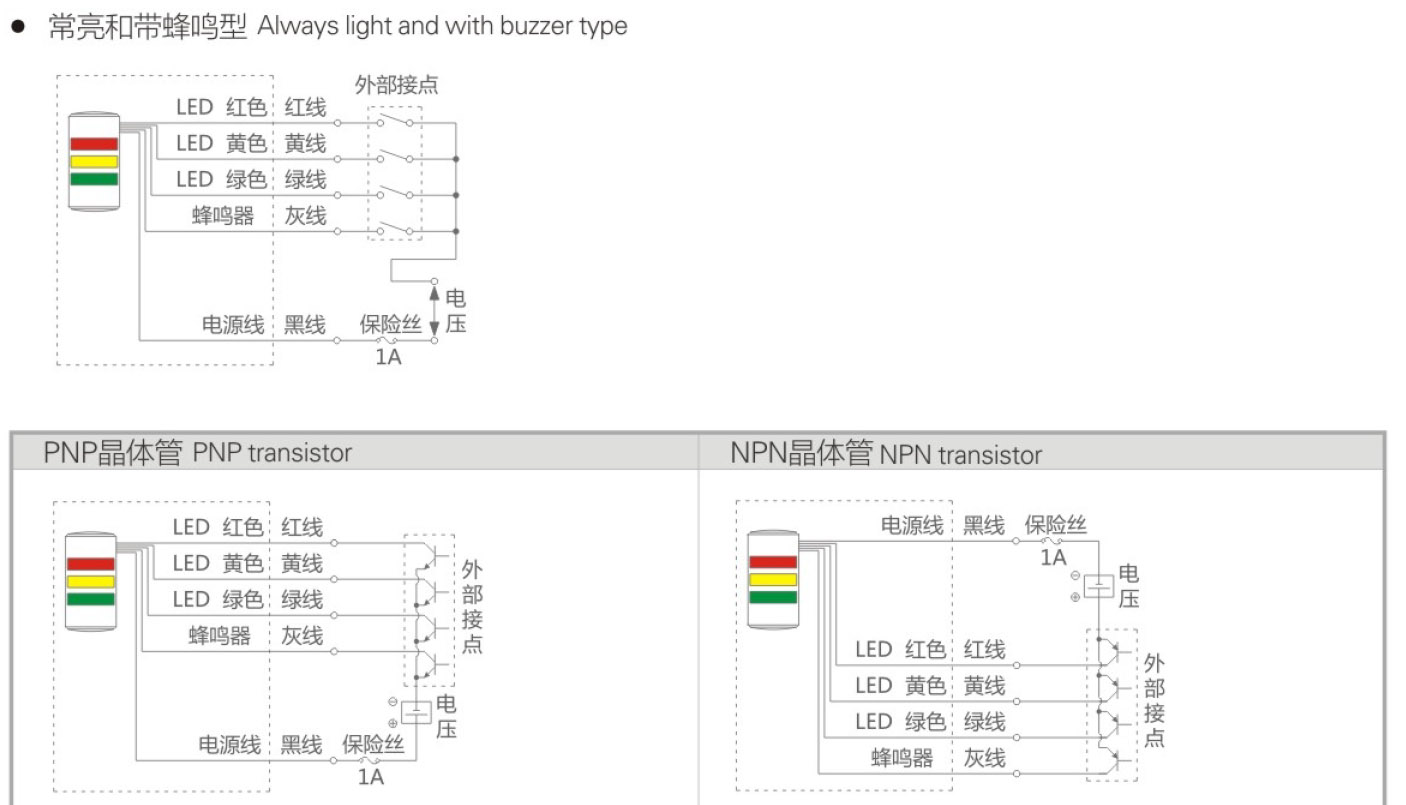

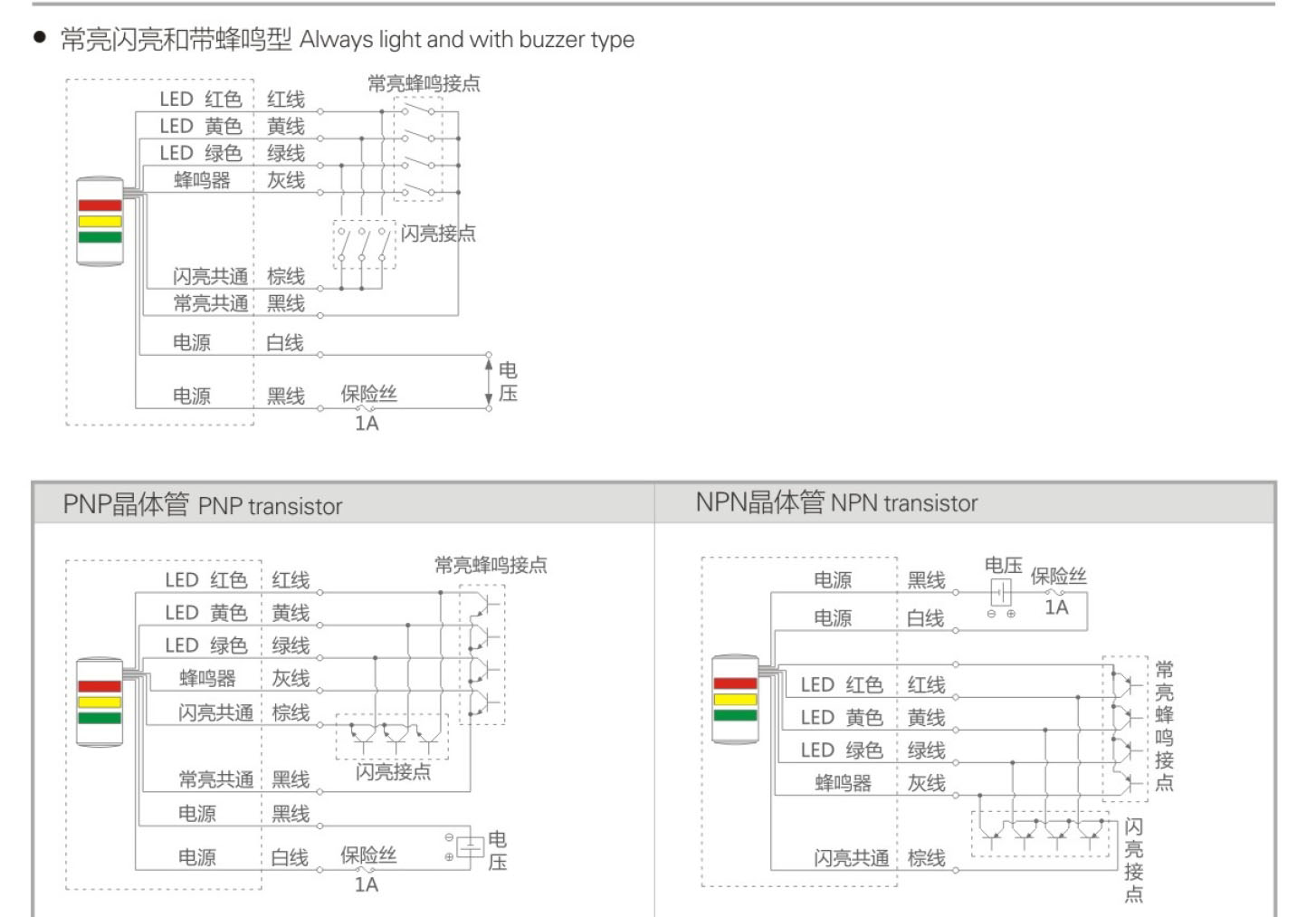

Wiring Diagram
| 品名LED Color | 信号线颜色Signal line color |
| 红色LED | 红 色 R e d |
| 黄色LED | 黄色Yellow |
| 绿色LED | 绿色Green |
| 蜂鸣器Buzze | 灰 色 G r e y |
| 晶体管(NPNPNP) | |
| 电流容量Current capacity | lc≥100mA |
| 耐电压 Voltage resistance | Vc≥35V |
| 漏电流 leakage current | <0.1mA |
| Voltage | Signal line Voltage | LED | Buzze | ||
| Red,Yellow | Green | Sgnal lne cument | Peak curent | ||
| DC12V | DC 12V | 60mA | 60mA | 50mA | 400mA |
| DC 24V | DC 24V | 20mA | 20mA | 50mA | 400mA |
Fuses for all voltages: 1A
DC power supply wvithout positive and negative polarity
Products without buzzer signal cable is not configured
Signal Line: Lead-Out Type
Power Cord: Lead-out Type
Do not apply woltage on the braw wire

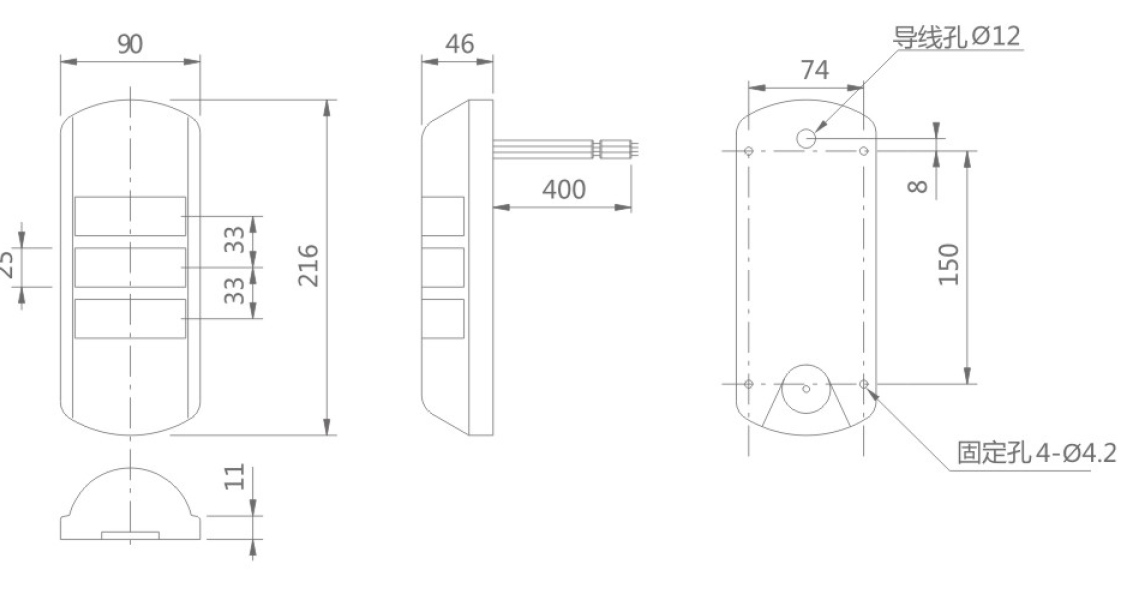

Installation Dimensions
