♦lnstallation diameter:8/10/12mm
♦Protection Degree:lP40
♦Compact Design Proof
♦Shade UV ProofLED
♦Super Bright Cold Light LED
Item No :
SCH-K8/10/12Order(MOQ) :
5Payment :
T/TProduct Origin :

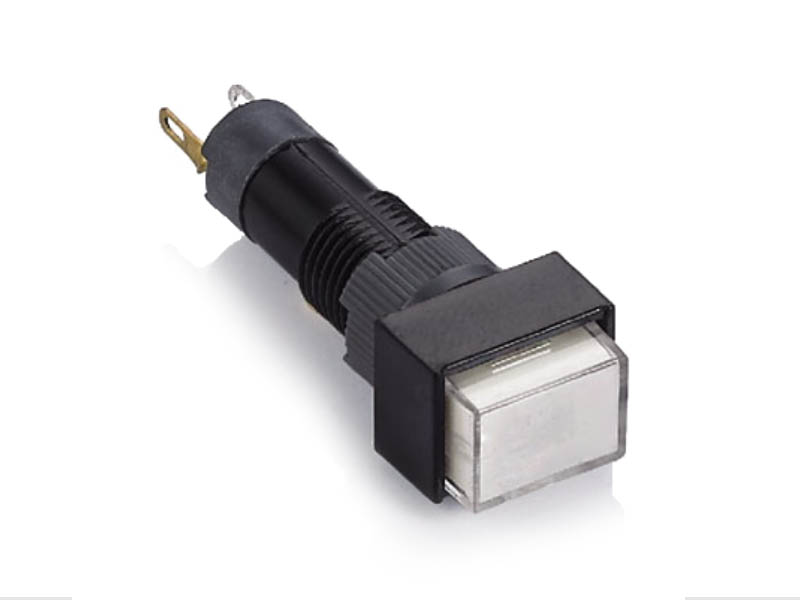

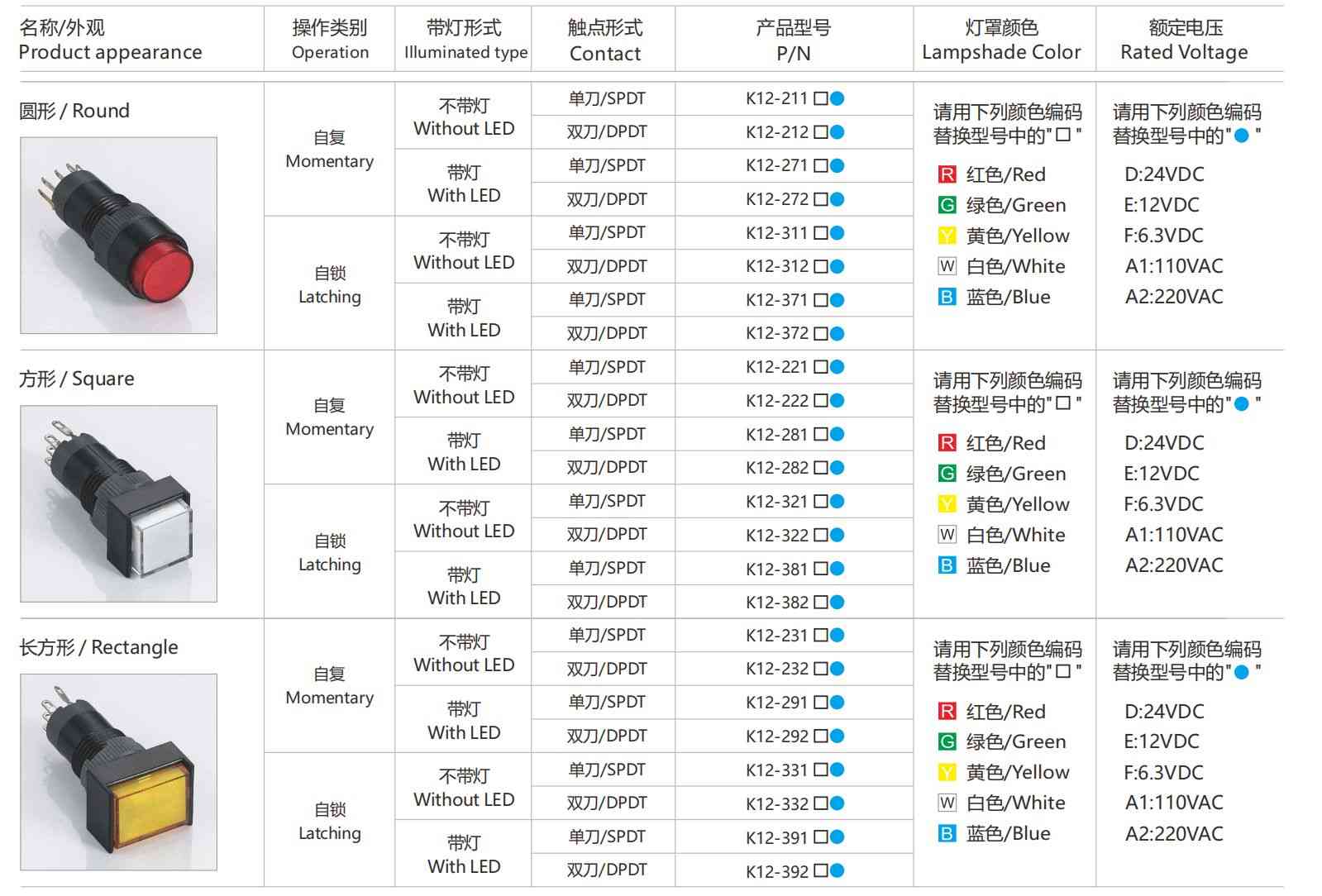

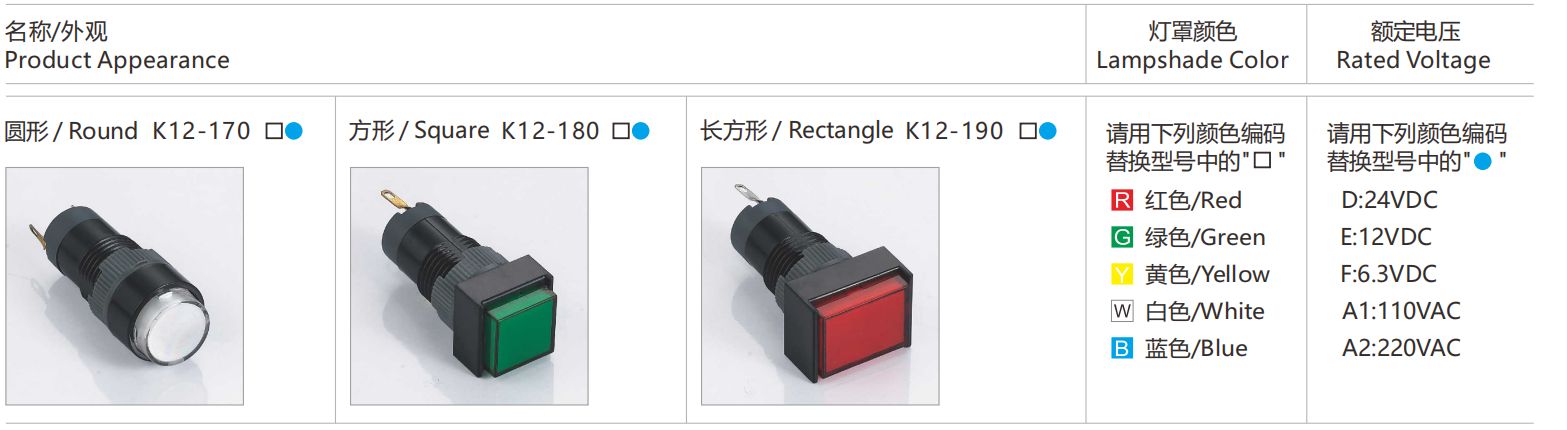

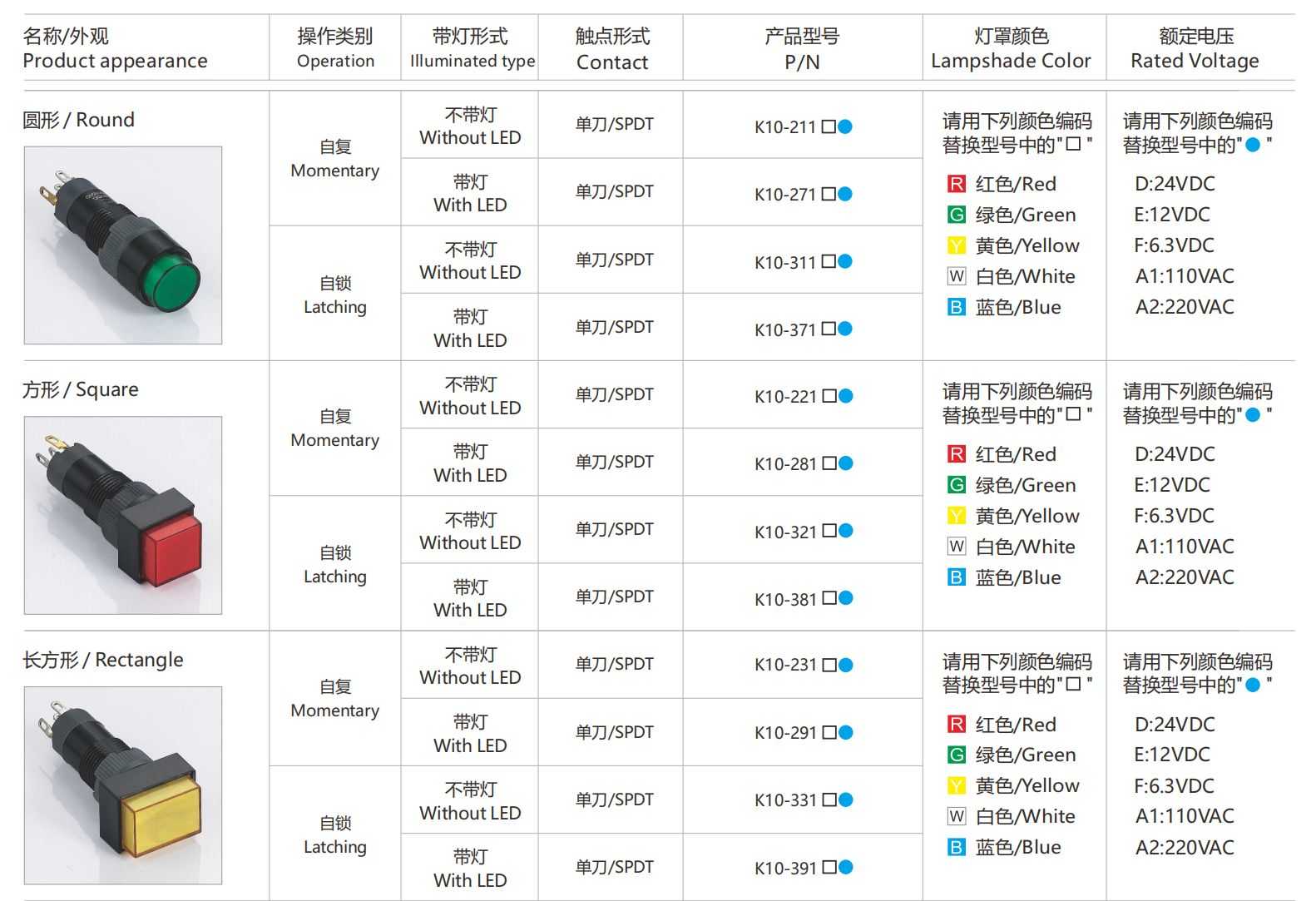

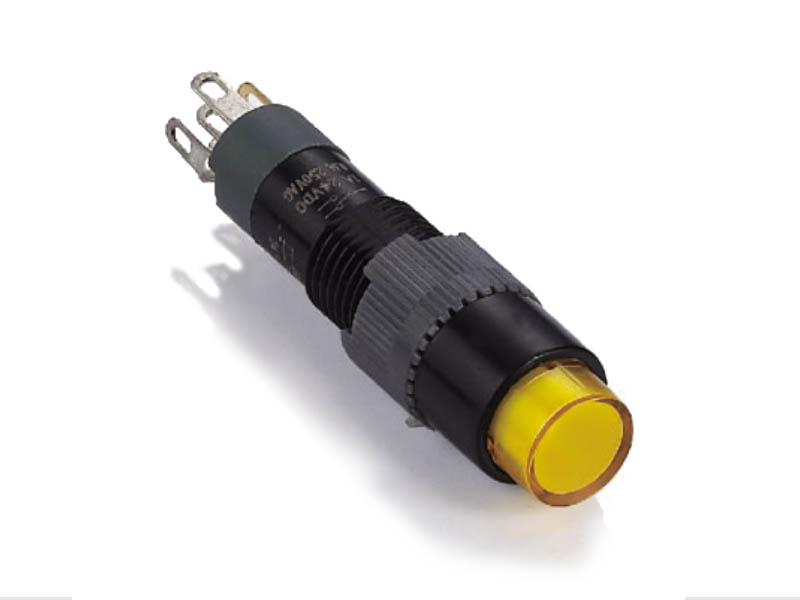

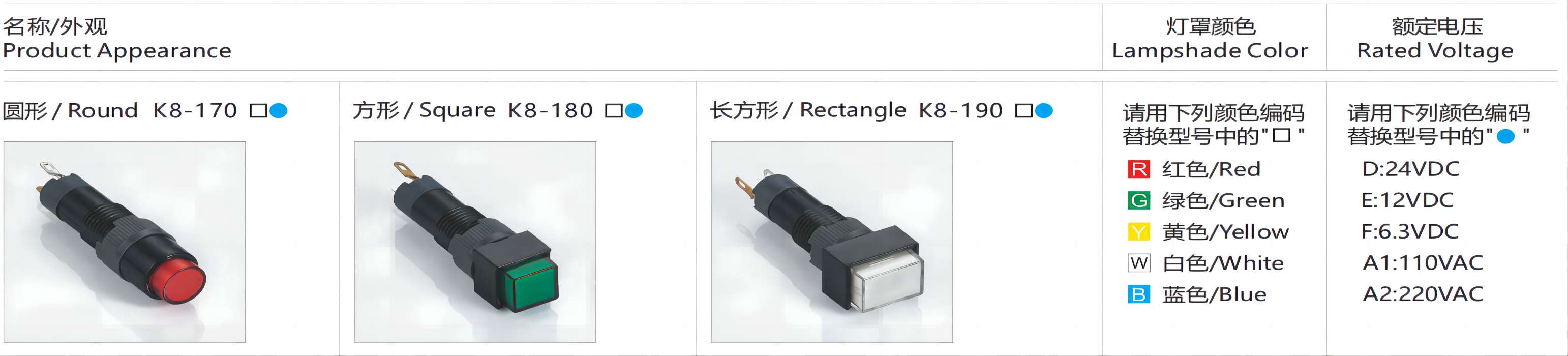

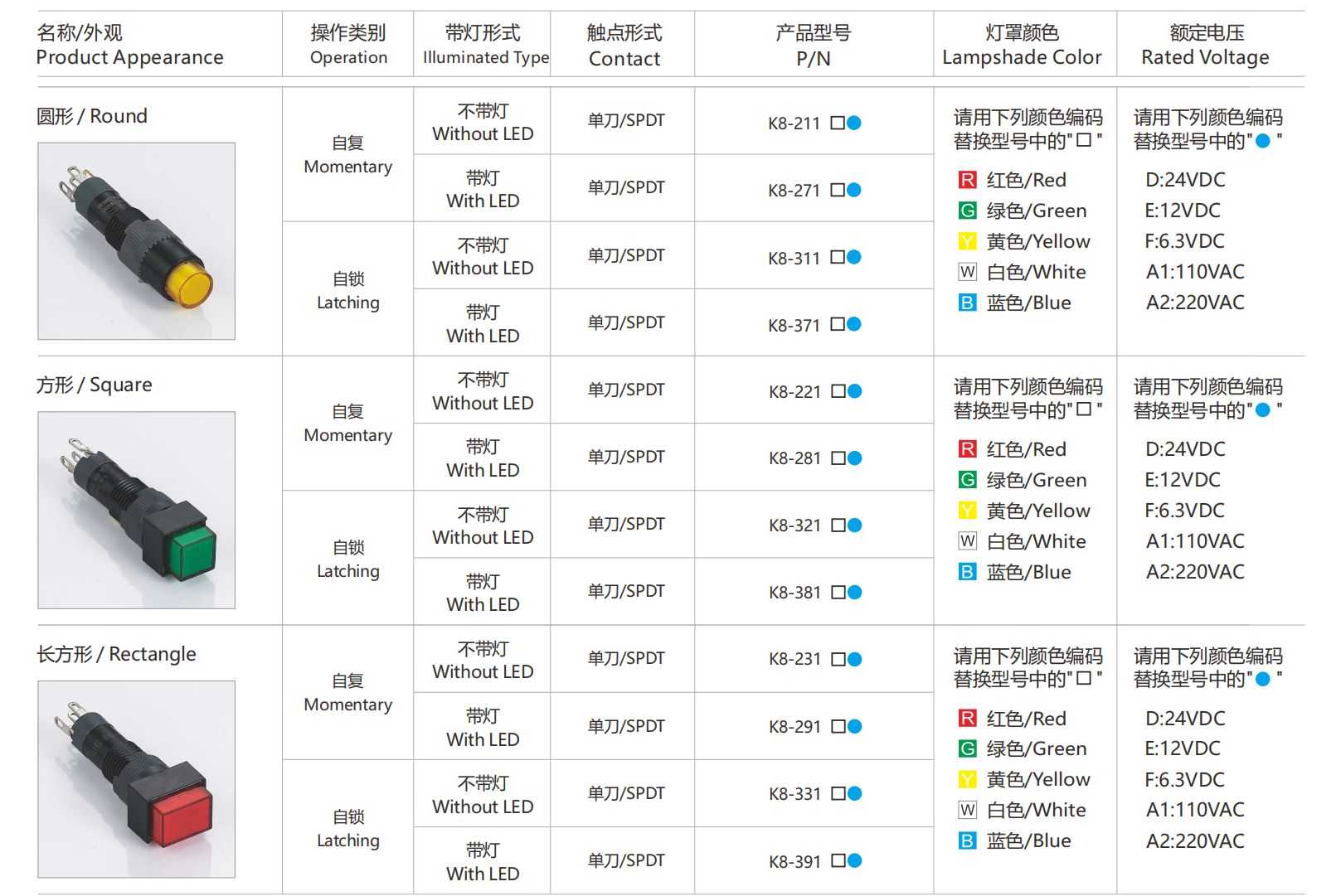

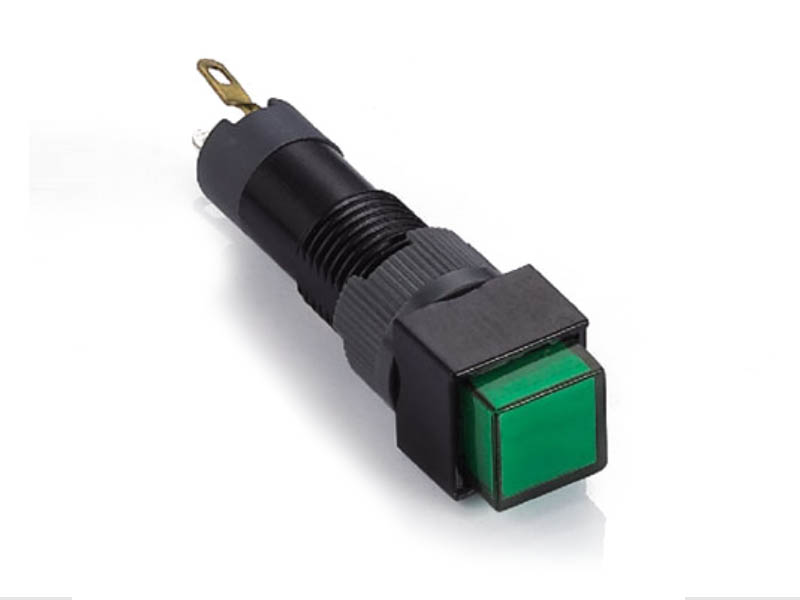

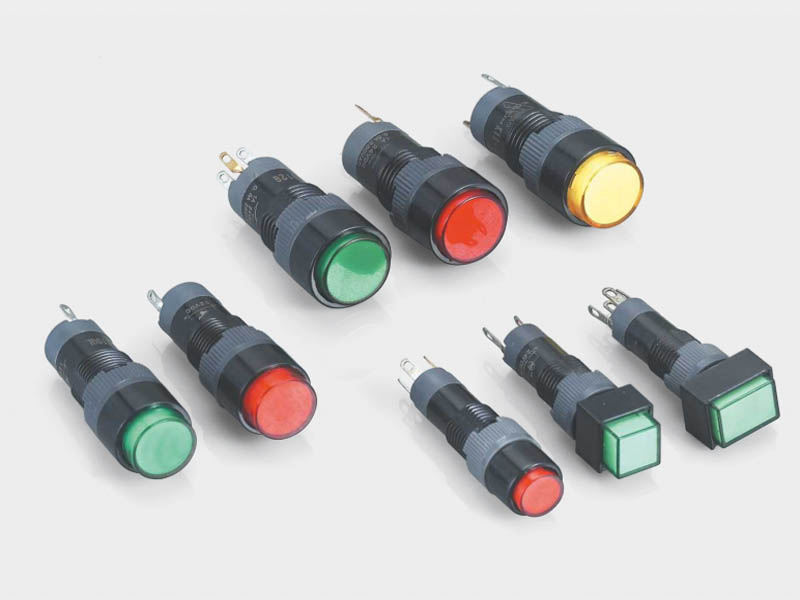

ChinaSCH-K8/10/12 Push Button & Indicator
Self-resetting micro plastic push button switch, self-locking with light, small inching operation 8MM/10MM/12MM specifications
Technical Specifications
| Degree of Protection | Select IP40,key IP20,others IP65 |
| Contact | SPDT,DPDT |
| Maximum Voltage | 250V AC/DC |
| Thermal Current | 5A |
| Minimum Applicable Load | 5V AC/DC,1mA |
| Contact Material | Silver alloy (gold plated) |
| Terminal Style | 110 Terminal |
| Operating Temperature | -25℃ to +60℃ |
| Operating Humidity | 45 to 85%RH |
| Electrical Life | 100,000 Operations minimum |
| Mechanical Life | Latching:100,000 times Momentary:1,000,000 times Selector /Key Switch:250,000 times |
| Dielectric Strength | 1500VAC 1min |
| Insulation Resistance | 100MΩ minimum(500V DC megger) |
| Vibration Resistance | 10 to 55Hz,amplitude 1.2mm |

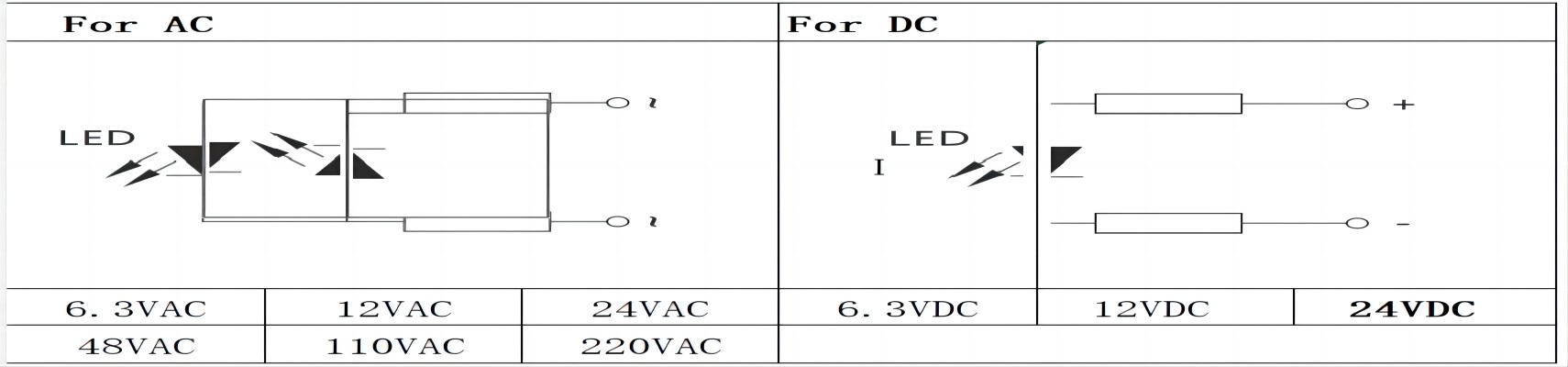

LED Circuit
LED Ratings
| LED Voltage | Current |
| 3V DC | 8mA |
| 6-48V AC/DC | 7-10mA |
| 110-220V AC | 2-3mA |
Contact Ratings(AC-15 DC-13)
| Working voltage | 24V | 110V | 220V | |
| AC (50/60Hz) |
Resistive | —— | 1.0A | 0.5A |
| Inductive | 0.7A | 0.5A | ||
| DC | Resistive | 1.0A | 0.2A | — — |
| Inductive | 0.7A | 0.1A | ||

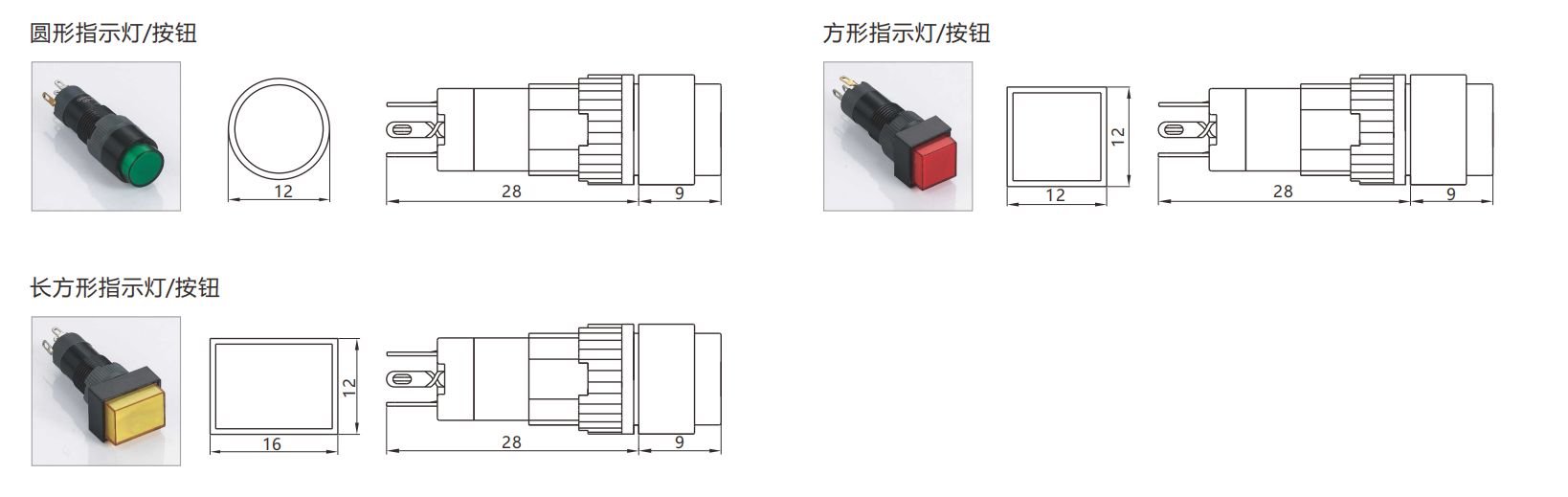

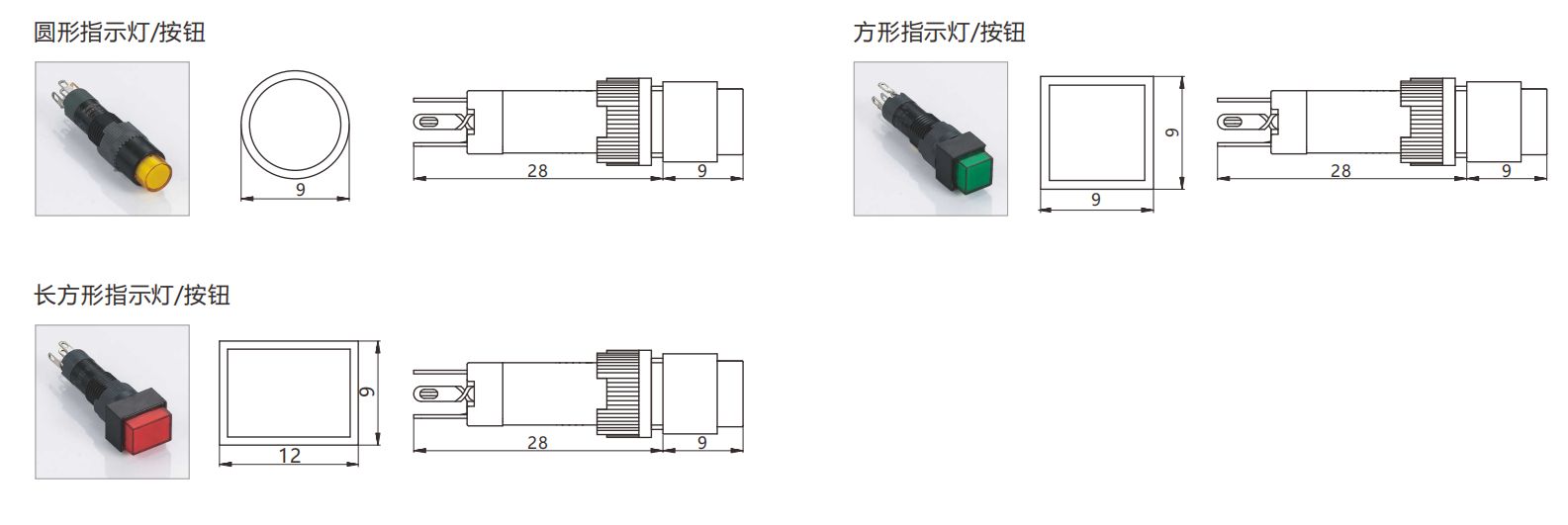

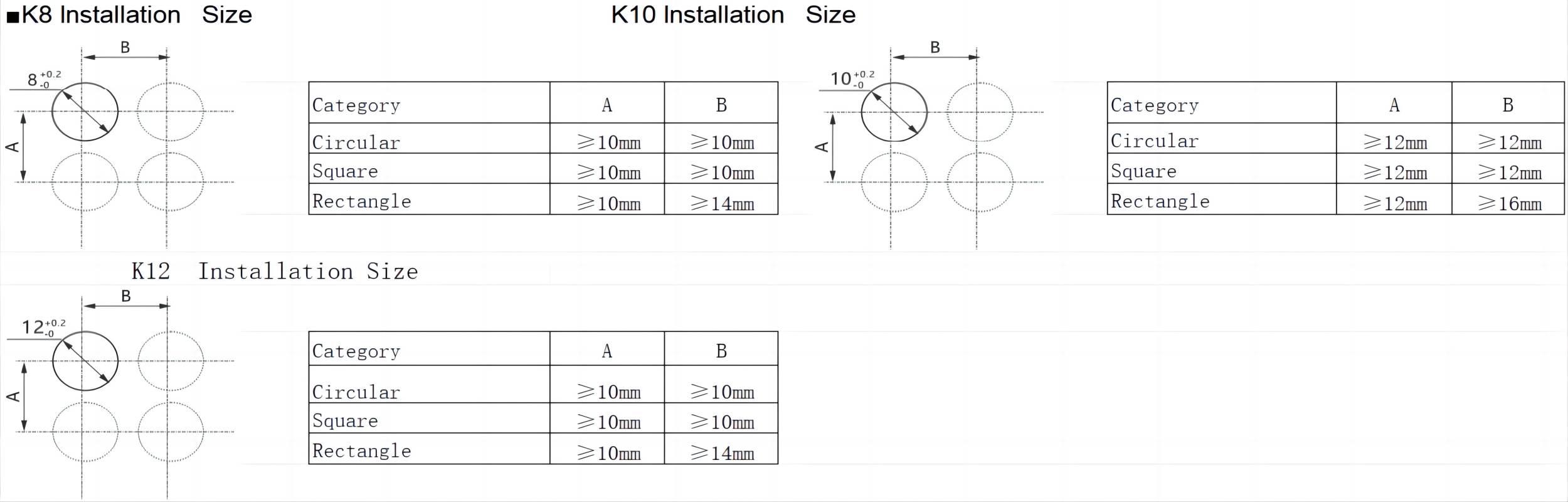

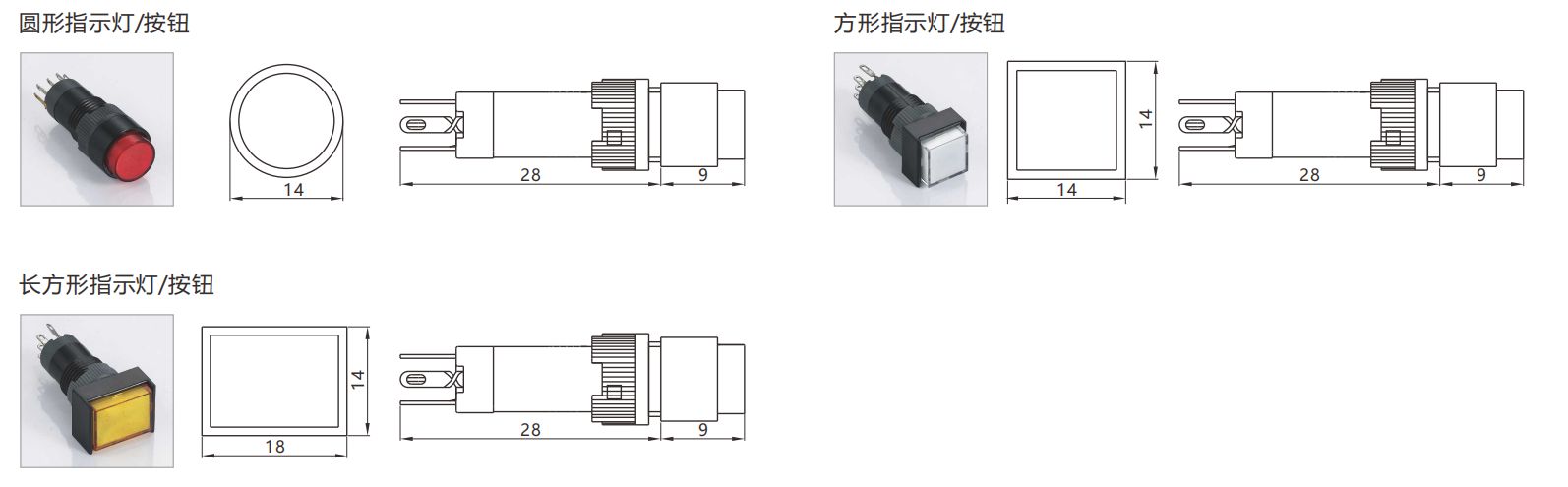

Installation Size
