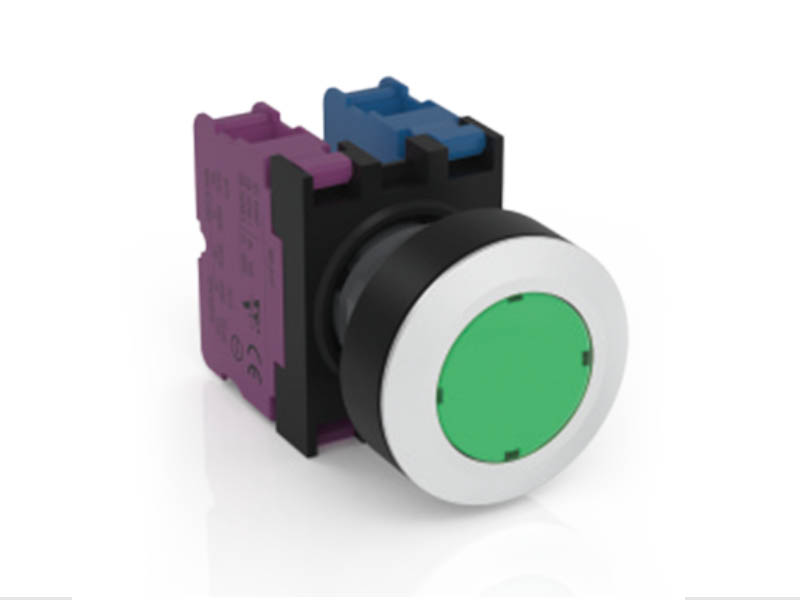

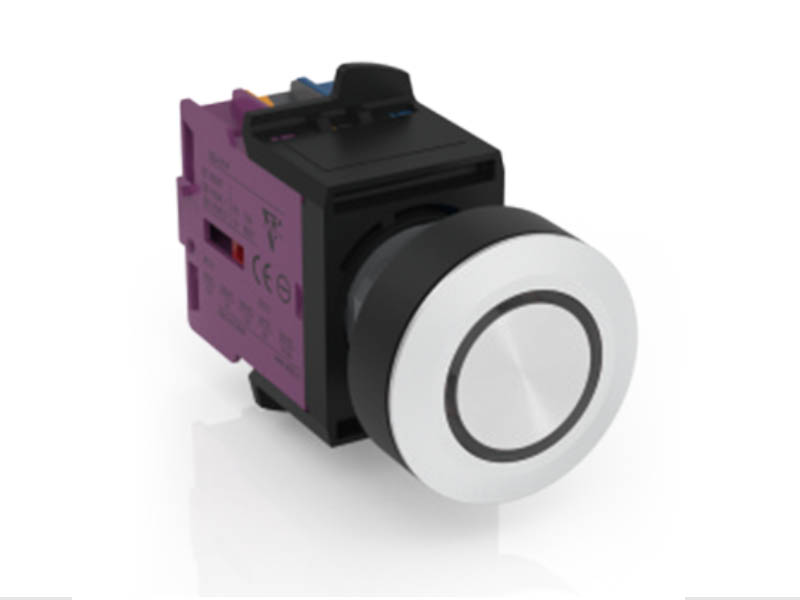

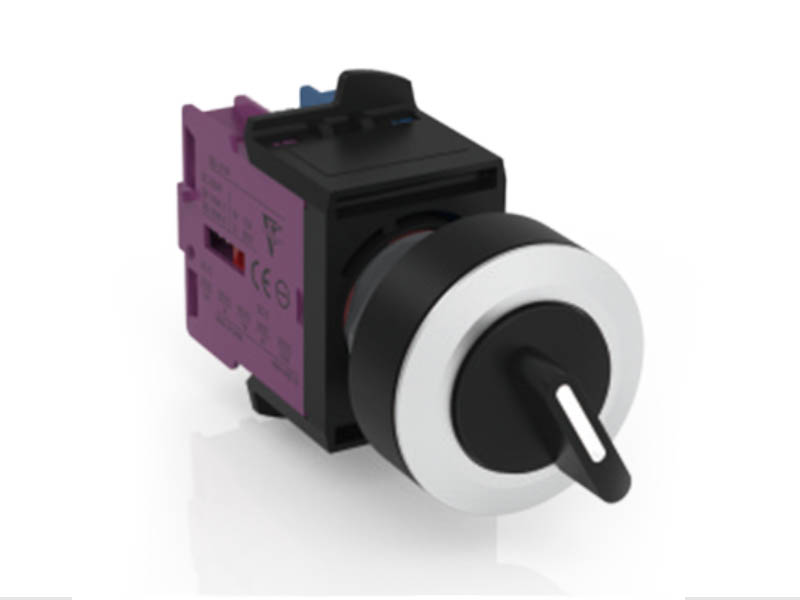

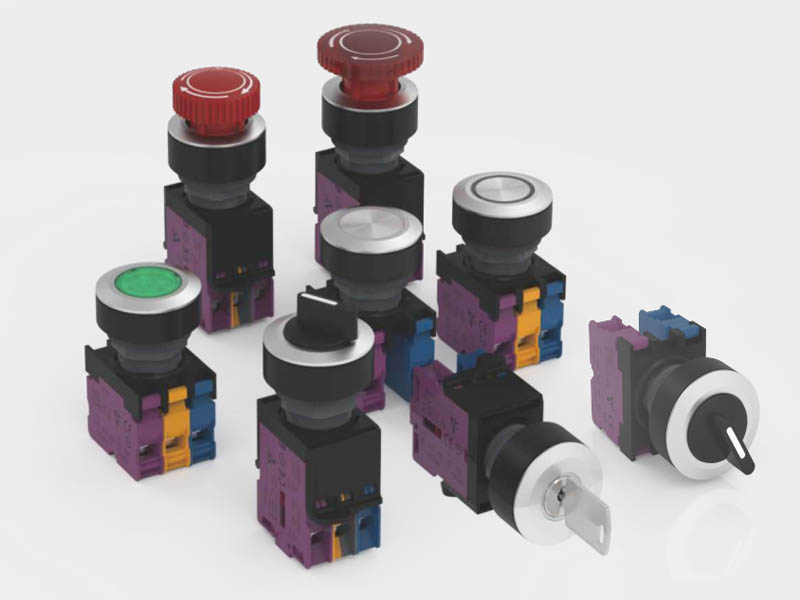

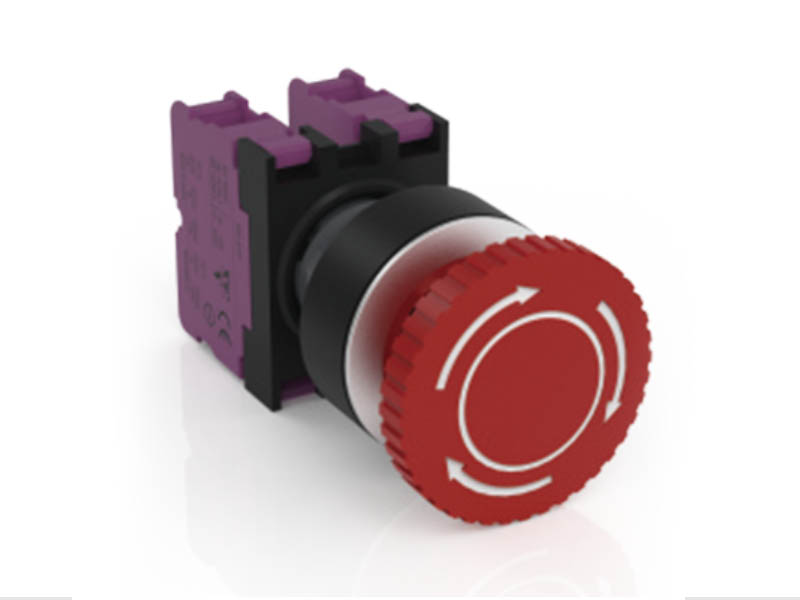

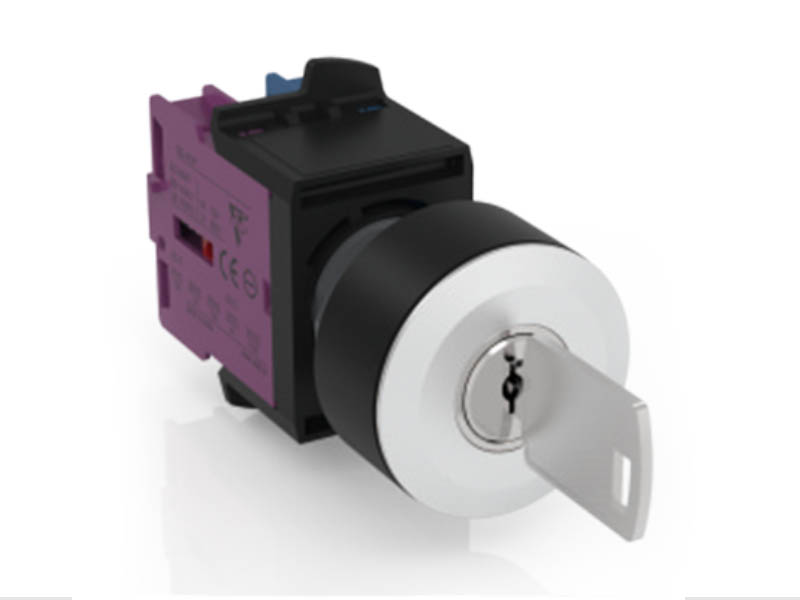

ChinaSCH-SD30 series push button indicator

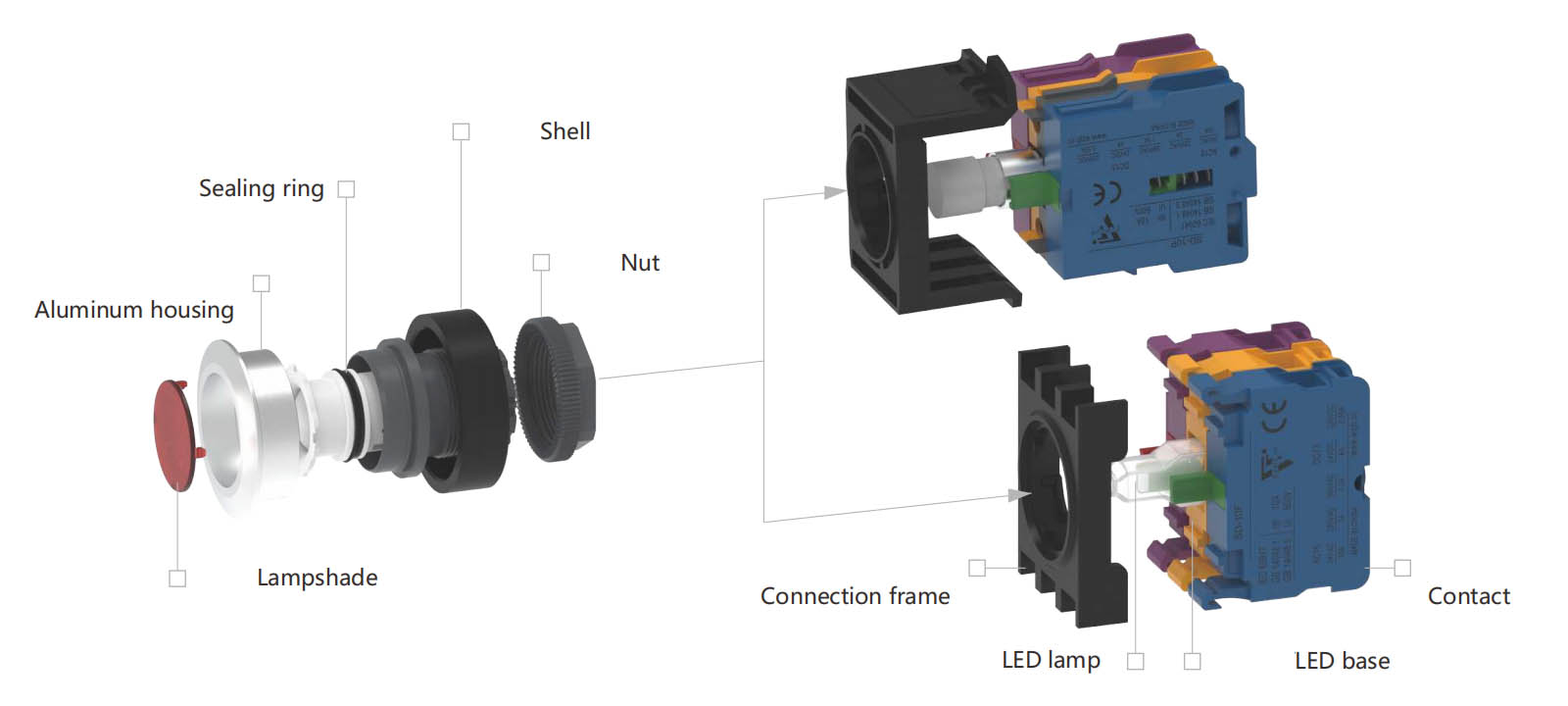

The SD30 series plastic push button switch is not only small in size and light in weight, but also has a fixed safety structure. The combined contact block makes installation and sensing more convenient.
Technical Specifications
| Operating Temperature | -25～+60℃ |
| Operating Humidity | 45～85% |
| Storing Temperature | -40～+70℃ |
| Storing Humidity | 95%RH以下/Below 95%RH |
| Insulation Resistance | ≥100MΩ (500V DC) |
| Dielectric Strength | Contact block:2,500V AC/1min Indicator:2,000V AC/1min |
| Degree of Protection | Head:IP65(IEC 60529) Bottom:IP20(IEC 60529) |
| Vibration Resistance | E-Stop Switch Miss operation:10~55Hz Single amplitude:0.35mm 50m/s² Durability:10~55Hz Single amplitude:0.35mm 50m/s² |
| Selector Switch/ Push Button/ Key Switch Miss operation:5~55Hz Single amplitude:0.5mm Durability:30Hz Single amplitude:1.5mm |
|
| Shock resistance |
E-Stop Switch Miss operation:150 m/s² Durability:1,000 m/s² |
| Push Button/ Illuminated Push Button/ Selector Switch/Key Switch Miss operation:100 m/s² Durability:1,000 m/s² |
|
| Mechanical Life |
E-Stop Switch 2.5x10⁵次(Only for single contact) |
| Push Button/ Illuminated Push Button Momentary:5x10°次(Single contact); 1x10⁶次(Double contact) Latching:2.5x10次(Single contact); 1x10⁵次(Double contact); |
|
| Selector Switch/Key Switch 2.5x10⁵次(Single contact); 1x10⁵次(Double contact) |
|
Electrical Life |
E-Stop Switch 1x10⁵次(Only for single contact) |
| Push Button/ Selector Switch/Key Switch： 1x10⁵次(Single contact); 5x10⁴次(Double contact); |
| Rated insulation voltage(Ui) | 600V | ||||
| Rated current(Ith) | 10A | ||||
| Rated voltage(Ue) | 24V | 120V | 240V | 380V | |
| AC 50/60Hz |
resistive load(AC-12) | 10A | 10A | 6A | 2A |
| inductive load(AC-15) | 10A | 6A | 3A | 1.9A | |
| DC | resistive load(DC-12) | 8A | 2.2A | 1.1A | 一 |
| inductive load(DC-13) | 4A | 1.1A | 0.55A | 一 | |
| Voltage | Current |
| 6-48V AC/DC | 7-10mA |
| 110-220V AC | 2-3mA |
