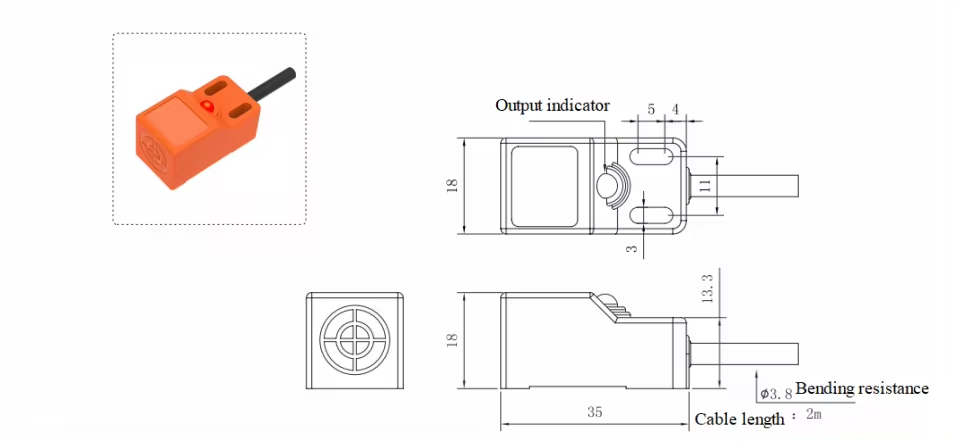

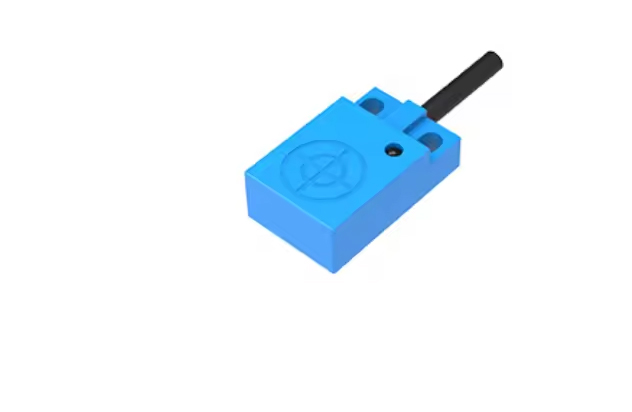

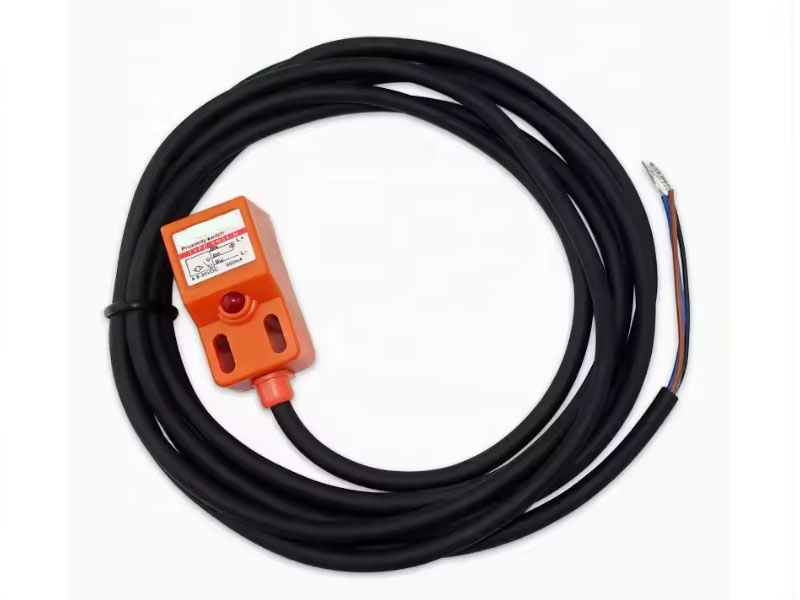

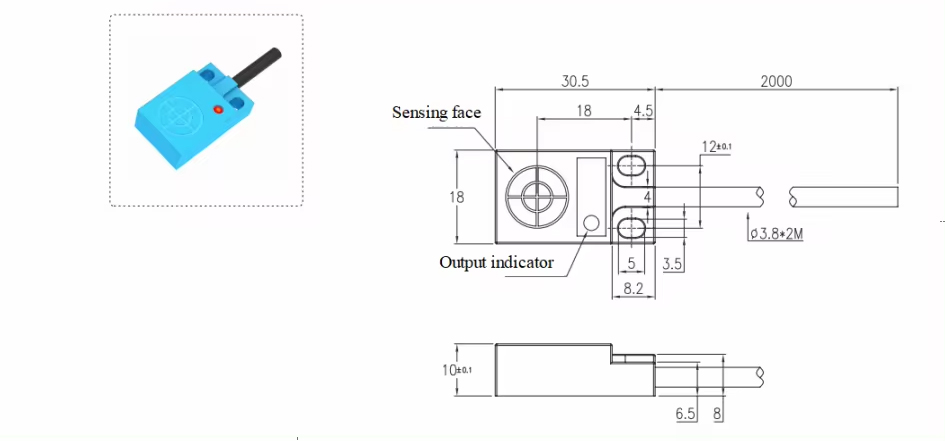

SCH04-N DC Inductive Compact Square Proximity Sensor

Product name Square proximity sensor Housing material ABS Function Position detection and counting Package Kraft box

♦Stable performance♦Strong anti-interference ability♦Sensitivity can be adjusted according to the use environment♦Fast and accurate detection, minimum detection object size 0.8mm. ♦Detects small metal objects from any angle.
