♦Integrated I/O, CC-Link protocol, 4AO.
♦Signal current: 0~20 mA / 4~20 mA, measurement error: ±0.1%.
♦Size: 102*72*25mm, space-saving, fast speed, fast wiring, pluggable wiring terminals, compatible with Mitsubishi's Q and FX series PLC.
♦Simple configuration, IP20 rated protection.
Item No :
SCH-C4Order(MOQ) :
5Payment :
T/TProduct Origin :
ChinaSCH-C4 Vertical I/O CC-Link
The C4 series of integrated I/O modules adopts the CC-Link bus interface and is a CC-Link slave device with a standard IO architecture. The module occupies a small space, has high real-time performance and is rich in variety, providing users with multiple options for high-speed data collection, optimizing system configuration, simplifying field wiring, and improving system reliability.
| Power Supply | 18~36 VDC |
| Weight | 150g |
| Module Size | 102*72*25mm |
| Protect. Class | IP20 |
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~75℃ |
| Relative Humidity | 95 %, no condensation |
| Power Interface | Push-in Connection |
| Protocol | CC-Link |
| Data Transfer Medium | CC-Link cable |
| Data Transfer Rates | 10 Mbps/5 Mbps/2.5 Mbps/625 kbps/156 kbps |
| Distance Between Stations | ≤100 m/≤160 m/≤400 m/≤900 m/≤1200 m |
| Electrical Isolation | 500V |
| Bus Interface | Push-in Connection |
| Analog Outputs | 4 |
| Signal Voltage/Current | 0~20 mA / 4~20 mA |
| Resolution | 16 bit |
| Measuring Error | ±0.1% |
| Electrical Isolation | 500V |
| Indicator | Green LED |
| Parameter Type | Current |
| Load Impedance | ≤200 Ω |

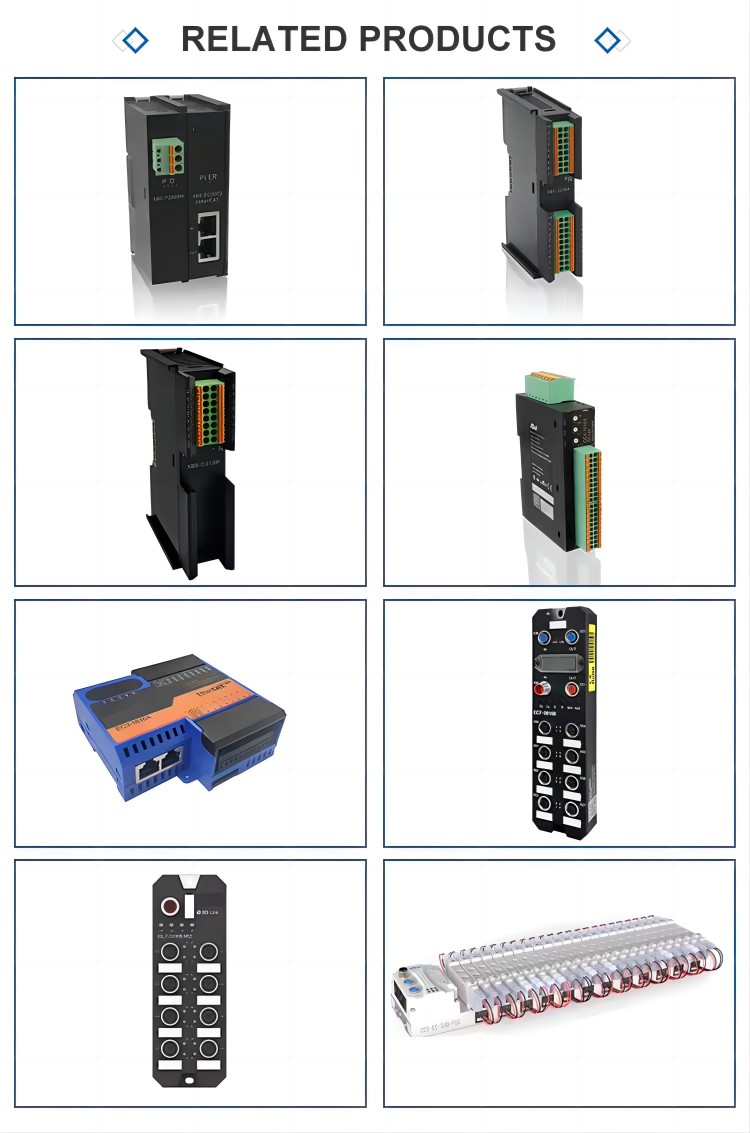

Recommend Products
