♦IP67 I/O module, integrated design.
♦PROFINET fieldbus, 8DI 8DO, NPN.
♦Using reinforced plastic material.
♦Power interface using M12-L coding.
♦Covering various types of signals.
♦Rich indicator light function design.
Item No :
SCH-0808AOrder(MOQ) :
5Payment :
T/TProduct Origin :
ChinaSCH-0808A /O IP67 PROFINET Intergrated
PN7 series integrated I/O module adopts PROFINET industrial Ethernet bus interface. It is a PROFINETslave device with standard IO equipment. It can be compatible with PROFINET networks of multiplemanufacturers, providing users with high-speed data collection, optimizing systemconfiguration, andsimplifying on-site wiring, improving system reliability and etc, a variety of options.
| Power Supply | 18~36 VDC |
| Weight | 480g |
| Module Size | 225×62×35.1mm |
| Protect. Class | IP67 |
| Operating Temperature | -25 ~ +70℃ |
| Storage Temperature | -40 ~ +85℃ |
| Relative Humidity | 95 %, no condensation |
| Power Interface | 2×M12，5Pin，L-code，red |
| UStotal current | Max：16A |
| USpower consumption | ≤40mA |
| ULtotal current | Max：16A |
| ULpower consumption | 25mA + Sensor supply current + load output current |
| Electrical isolation between GNDS and GNDL | YES |
Interface data
| Protocol | PROFINET |
| Data Transfer Medium | CAT5e: UTP or STP（STP recommended） |
| Distance Between Stations | ≤100m |
| Electrical Isolation | 500V |
| Bus Interface | 2×M12，4Pin，D-code，blue |
| Nominal Voltage | 24VDC(±25%) |
| Number of Outputs | 8 |
| Transistor Polarity | NPN |
| Input Current | 4 mA |
| Electrical Isolation | 500V |
| Indicator | Green LED |
| "0" Signal Voltage | 15~30 V |
| “1” Signal Voltage | -3~+3 V |
| Input Filter | 3ms |
| Input Interface | 8×M12，5Pin，A-code |
| Total Sensor Power Supply | Max：2A（from UL） |
| Isolation Method | Optocoupler isolation |
| Nominal Voltage | 24VDC(±25%) |
| Number of Outputs | 8 |
| Transistor Polarity | NPN |
| Load Type | ohmic, inductive load |
| Max. Output Current | Max：500 mA（from UL） |
| Port Protection | Overcurrent |
| Electrical Isolation | 500 VAC |
| Indicator | Green LED |
| Output Interface | 8×M12，5Pin，A-code |
| Output total current | Max：4 A（from UL） |
| Isolation Method | Optocoupler isolation |

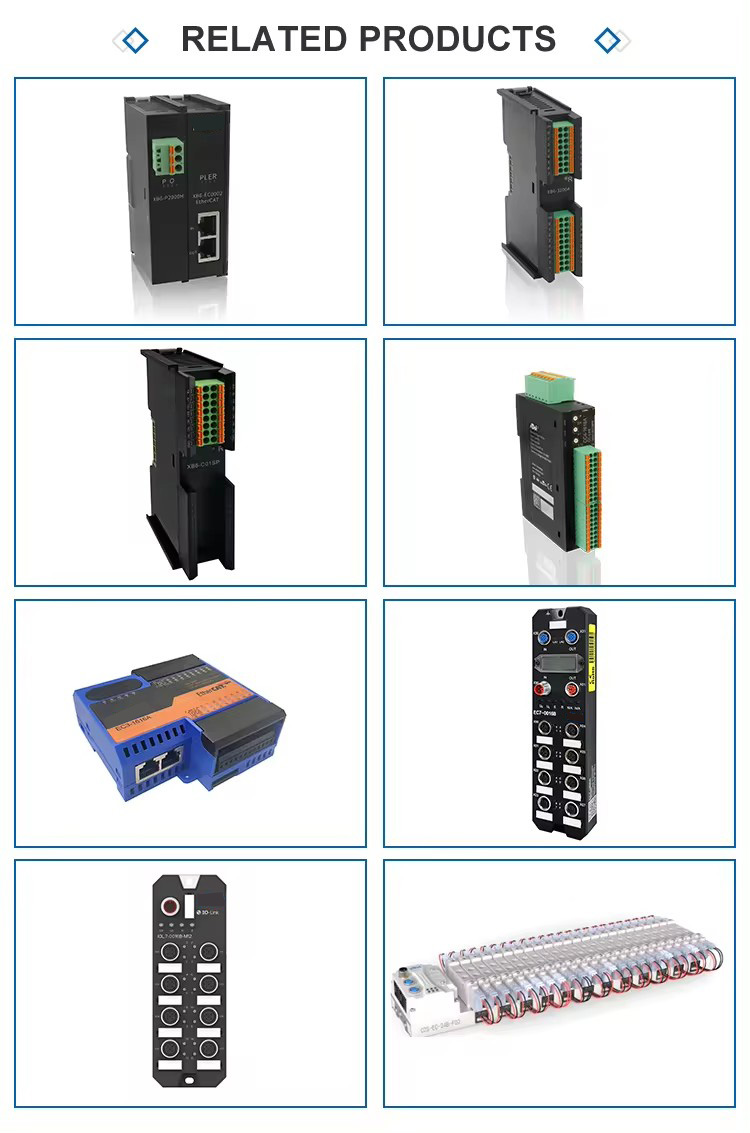

Recommend Products
