♦Integrated I/O, horizontal style, PROFINET protocol, 16DI, 16 DO, NPN.
♦Dimensions: 100*96*35mm, space-saving, fast speed, quick wiring, simple configuration, compatiable with mainstream PLC brands such as Mitsubishi, Beckhoff, Omron, etc..
♦Simple configuration, protection level IP20.
Item No :
SCH-N3Order(MOQ) :
5Payment :
T/TProduct Origin :
ChinaSCH-N3 I/O Module Profinet Integrated 16-Channel
SCH-N3 series integrated I/O module adopts PROFINET industrial Ethernet bus interface and is a PROFINET slave device with standard IO architecture.
It is compatible with PROFINET networks from multiple manufacturers, providing users with multiple options for high-speed data collection, optimizing system configuration, simplifying field wiring, and improving system reliability.
Technical Specifications
| Power Supply | 18~36 VDC |
| Weight | 170g |
| Module Size | 100×96×35mm |
| Protect. Class | IP20 |
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~75℃ |
| Relative Humidity | 95 %, no condensation |
| Protocol | PROFINET |
| Data Transfer Medium | UTP or STP of 5 categories or above (STP recommended) |
| Bus Interface | 2*RJ45 |
| Data Transfer Rates | 100 Mbps |
| Distance Between Stations | 100m |
| Electrical Isolation | YES |
| Nominal Voltage | 24VDC(±25%) |
| Number of Outputs | 16 |
| Transistor Polarity | NPN |
| Input Current | 4 mA |
| Electrical Isolation | 500V |
| Indicator | Green LED |
| "0" Signal Voltage | 15~30 V |
| “1” Signal Voltage | -3~+3 V |
| Nominal Voltage | 24VDC(±25%) |
| Number of Outputs | 16 |
| Transistor Polarity | NPN |
| Load Type | Resistive load, inductive load |
| Max. Output Current | Max：500 mA |
| Port Protection | Overcurrent |
| Electrical Isolation | 500 V |
| Indicator | Green LED |

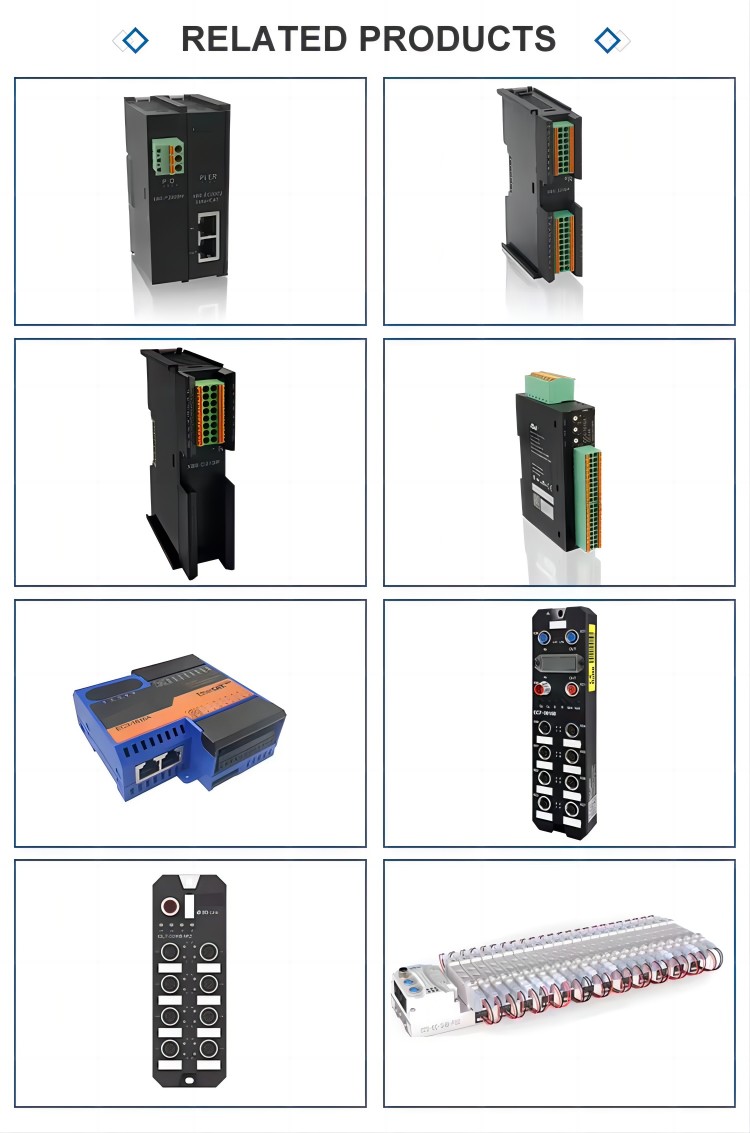

Recommend Products
