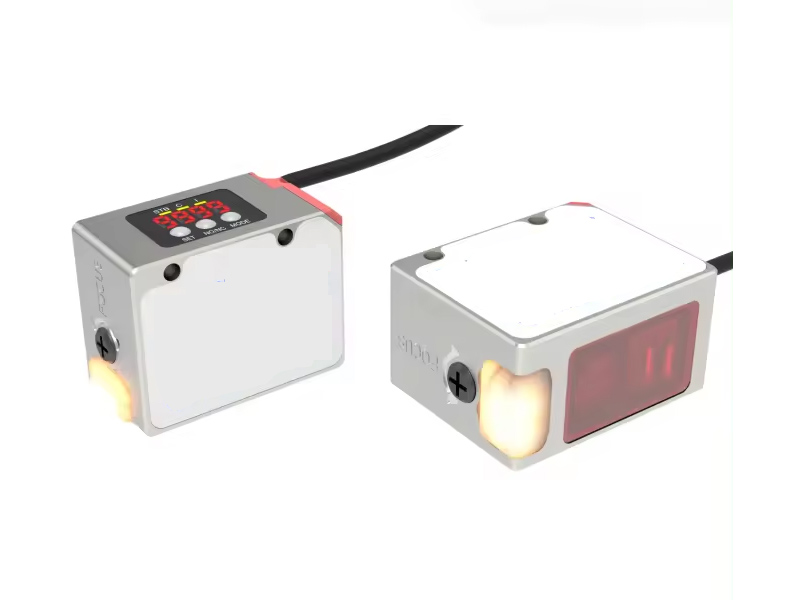

ChinaSCH-W50N Photoelectric Switch Self-contained Full Spectrum Sensor
SCH-W50N Replace Contrast Digital Color Mark White Light Spot Photoelectric Switch Self-contained Full Spectrum Sensor
Technical Specification
| Model | SCH-W50N | SCH-W50P | |
| Output Type | NPN | PNP | |
| Type | cable type | ||
| Conrol Output | I output port,buit in short ciruit protection,and have automatic anti any interference function |
||

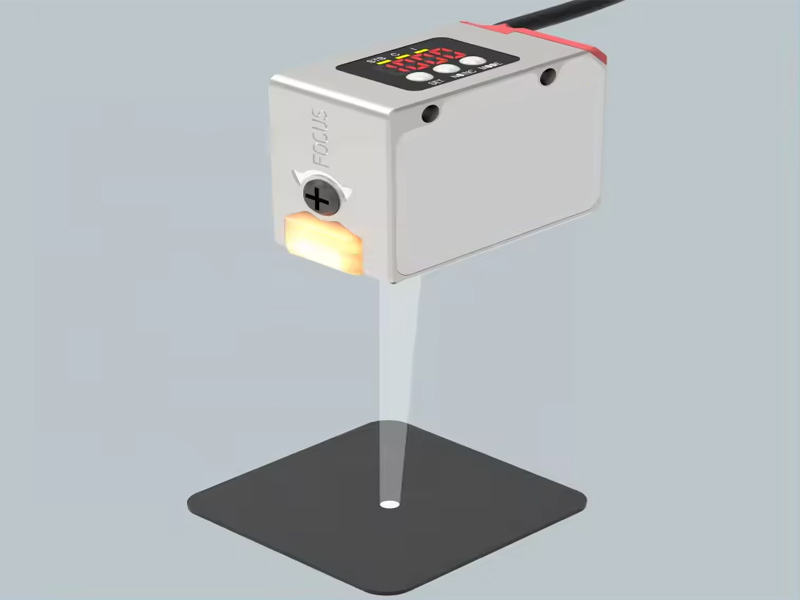

| Light Source | white LED ,adjustable spot,minium spot diameter 3.6MM | ||
| Response Time | AUTO,C mode and CI mode 200us,at MARK mode 160us | ||
| Output Option | LIGHT-ON/DARK-ON | ||
| Indicator | Operation indicator light:red infrared,LED display screen | ||
| Detection Mode | AUTO,C mod,CI mod and MARK mode sensing distance:30MM—500MM | ||
| Timer | OFF delay/ON delay/one-shot/ON one-shot timer optional,timer range(ms):1ms～9999ms | ||
| Conrol Output | NPN open collector/PNP open collector 24V,Maximum 100mA | ||
| Max current consumption 40mA(when connect external,drop voltage:2V | |||
| Power Supply | 12～24VDC±10%,ripple(P-P):≤10%class 2 | ||
| Ambient Illuminace | Incandescent lamp:20,000lux or less Sunlight:30,000lux or less | ||
| Consumption Power | Max Voltage:24V,Current within 60MA | Max Voltage:24V,Current within 60MA | |
| Vibration Resistance | 10～55Hz,double amplitude 1.5mm,2 hours in each of the X,Y,Z directions | ||
| Ambient | -10～+55℃,no freezing | ||
| Ambient Illuminance | Incandescent light:≤20.000lux,Sunlight:≤30.000lux | ||
| Power Consumption | Max standard power:≤300mW Max Voltage:24V | ||
| Vibration Resistance | 10~55Hz,double amplitude:1.5mm,X,Y,Z directions for 2 hours each | ||
| Ambient Temperature | 10~55℃,no freezing | ||

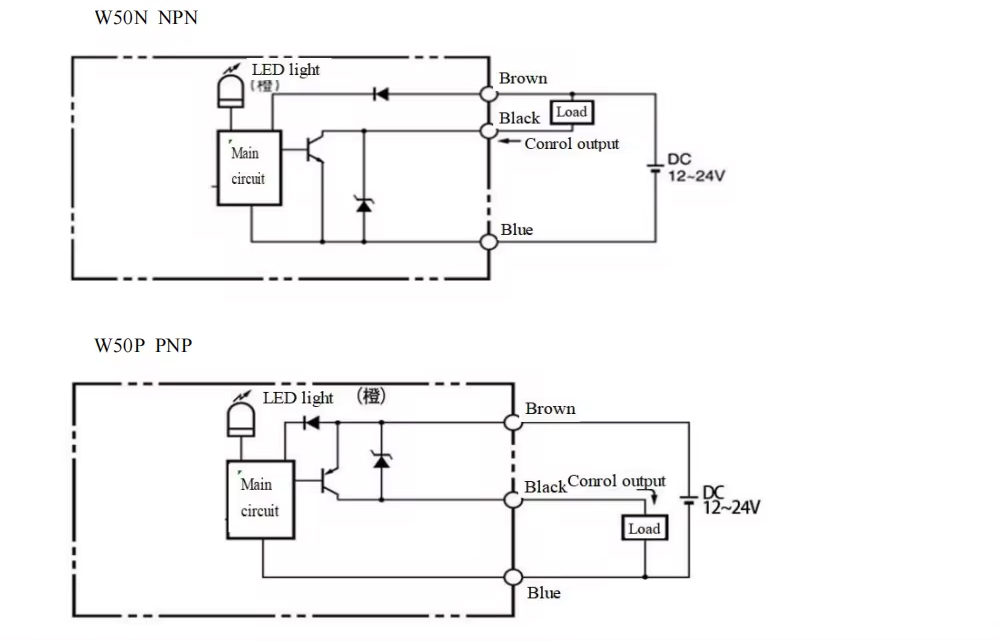

Product Wiring Diagram
FAQ
Can I get some samples?
Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order.
How to solve the quality problems after sales?
Take photos or videos of the problems and send to us.
We will make a satisfied solution for you within 24 hours after we confirm the problems.
